Sices GC315, Plus, Link 5G Controller [Italy Made]

Sices GC315 used to manage 3-phase generators, indicating status, parameters and warnings on the generator system. GC315 has automatic control functions for generators to help users more convenient during use.

SICES GC315, PLUS & LINK 5G CONTROLLER DESCRIPTION

• TTTT Global is currently a genuine Sices diesel generator controller representative.

• SICES GC315 is capable AMF and Autostart genset controller with 3 phase (RMS) mains voltages and 3 phase (RMS) generator voltages and currents monitoring. Integrated J1939 Canbus interface to electronic engines, and traditional interface for non-electronic engines GC315 is suited for managing the most common three-phases generator applications (Single Prime Mover and Single Stand-by gensets). Extensive input and output capability with optional communication interfaces (Sices GC315 Plus and Link 5G ready versions), make this an extremely powerful single genset controller.
• SICES GC315 TTTT with its self-adjustable contrast graphic display, and its user-friendly interface, provide you an instant visualization of the measures and alarms coming from the genset. The adjustable parameters of the controller allow the use of this device for standard and customized tasks, can be directly set with the controller’s keyboard, or using the free software tool (BoardPrg3), available on SICES’ Website.
• A version with built in GPRS/GPS tracking (GC315Link 5G) is particularly suited for mobile or rental applications, where asset tracking and monitoring is required. GC315 Link 5G has built in global 5G modem with global 2G fallback capability, which also embeds the GNSS localization system (GPS/GLONASS/BD) to provide a high availability solution that offers industry-leading accuracy and performance. GC315, in all versions, is able to measure the mains frequency and compute the mains power, also when the load is connected to the mains itself. It’s also able to measure the neutral of mains and generator voltages. Thanks to the separated push buttons, one for the MCB (Mains Circuit Breaker) and one for the GCB (Generator Circuit Breaker), the control of the genset in manual mode becomes easier.
• On the TTTT Global site, there are not only Sices GC 315 pdf but also Sices GC 315 manual.

Sices GC315 generator controller – TTTT Global

Main features

• Remote control systems.
• True RMS readings on mains voltages and on generator voltages and currents. Neutral measure included.
• Active, reactive and apparent power measurements.
• Frequency and power measurement on mains input.
• Engine speed measurement by frequency, pick-up or W.
• 8 programmable inputs and 8 programmable outputs.
• Additional current measurement for neutral or ground fault protection
• (50N + 64).
• Graphic display with self or manual adjustable contrast based on the temperature.
• Insulated and auto-supplied J1939 and MTU MDEC CAN interface.
• USB interface with MODBUS RTU protocol.
• RS232 serial port with MODBUS RTU protocol.
• RS485 insulated serial port with MODBUS RTU protocol.
• Ethernet interface with MODBUS TCP protocol.
• GPRS Modem.
• Possible connection to the software SIMONE.
• Real Time Clock with rechargeable battery.
• Events and data recording.
• Free monitoring tool SicesSupervisor3.

Reference: Sices gc600

Reference: Sices GC400

Sices GC 315, Plus, Link 5G controller specification

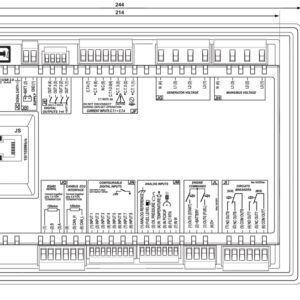

Connection port of SICES GC 315

• 8 +1 programmable digital input ports.
• 8 digital output ports.
• 3 analog input ports.
• AND /OR logic control gate.
• N.1 USB port.
• N.1 Interface CANBUS J1939 and MTU MDEC insulation.

Connection port of SICES GC 315 Plus

• 8 +1 programmable digital input ports.
• 8 digital output ports.
• 3 analog input ports.
• AND /OR logic control gate.
• N.1 USB port.
• N.1 serial port RS232 Modbus RTU.
• N.1 RS485 Modbus RTU insulated serial port.
• N.1 RJ45 port as Modbus TCP Ethernet interface.
• N.1 Interface CANBUS J1939 and MTU MDEC insulation.

Connection port of SICES GC 315 Link 5G

• 8 +1 programmable digital input ports.
• 8 digital output ports.
• 3 analog input ports.
• AND /OR logic control gate.
• N.1 USB port.
• N.1 serial port RS232 Modbus RTU.
• N RS485 Modbus RTU insulated serial port.
• N.1 Interface CANBUS J1939 and MTU MDEC insulation.
• GPRS modem.
• GPS antenna.
• Motion sensor, accelerometer and gyroscope.
• CE1588 compliant.

Other options

• REWIND – GPRS/GSM/GPS device.
• DANCE – Ethernet interface.

The GC 315 Link and GC 315 Plus provide a direct interface with the SIMONE software, for a real-time monitoring system with no external equipment required.

Methods of protection

Status

• Mains directly.
• Direct generator.
• The main contactor is closed.
• Generator contactor closed.
• Engine running.
• Engine cooling.

Generator protection

• Low frequency (81U).
• Excess frequency (81O).
• Low voltage (27).
• Overvoltage (59).
• Loss of arousal (reverse 40).
• Overload (51).
• Overload limiting voltage (51V).
• Short circuit (50).
• Short circuit voltage limiting (50V).
• Phase sequence (47).
• Current and voltage imbalance (46/ 47).
• Differential protection (87N).
• Earth fault protection (50N/ 64).
• Negative sequence (46-I2).

Engine protection

• Fuel reserve.
• Minimum and maximum fuel level.
• Minimum and maximum battery voltage.
• Minimum and maximum oil pressure.
• Minimum and maximum oil coolant temperature.
• Maximum power (32).
• The power contactor or controller contactor cannot be closed.
• Motor on crank.
• Overspeed for transmitter or receiver frequency or W.
• Break the belt.
• Operating conditions failed.
• Smallest and largest auxiliary current.
• Emergency stop.

Main protective measures

• Minimum and maximum power supply voltage (27/59).
• Minimum and maximum power frequency (81U/ 81O).
• Electrical breakdown.

A set of high-performance LEDs are used to signal generator conditions and potential warnings. By text message, it is possible to recognize the type of alarm/shutdown occurring.

Device information

• Supply voltage: 7 to 32 VDC.
• Power Consumption: Typically less than 2W (auto mode, standby mode, LCD lamp saving operation).
• Operating frequency 50Hz or 60Hz.
• Voltage measurement range: 30 to 520V (50Hz) and 35-520V (60Hz).
• LCD with backlight.
• Operating temperature: -25oC to 60oC.
• Degree of protection: IP65 (including gasket).
• Weight: 600 gr.
• Overall dimensions: Length 244 x Width 178 x Height 40 mm.
• Panel cut: Length 218 x Width 159 mm.
• Graphics display size: 70x38mm – 128×64 pixels.
• The specific function has the French market EJP/EJP-T.
• EMC: conforms to EN61326-1.
• Safety: Built in compliance with EN61010-1.
