Sices RN200 – [Italy] Hybrid controller wind solar and generator

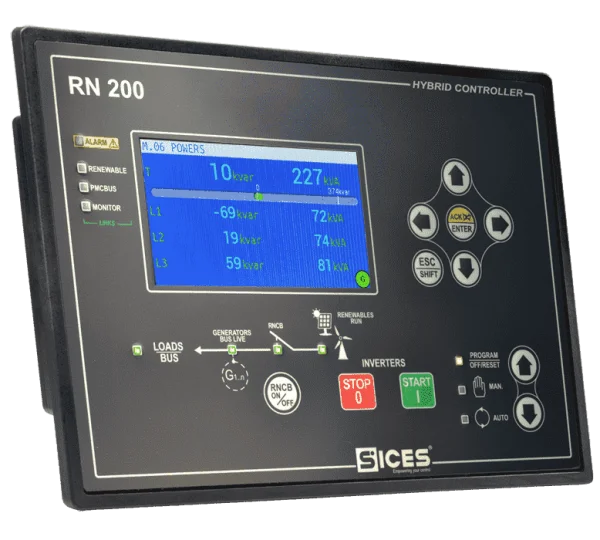

SICES RN200 hybrid controller is a controller specifically used for renewable energy sources such as hybrid controller wind solar. SICES RN 200 allows synchronizing and connecting energy sources to the grid, BN 200 also helps control and protect the system better.

Main information of SICES RN200

• TTTT Global is currently a genuine Sices ats controller representative.
• RN200 is a control and protection device for frequency converters to produce electricity from renewable energy sources (wind, photovoltaic, etc.).
• RN200 controller allows for simple integration of renewable sources and generators or mains. It allows maximum penetration of renewable sources, while ensuring maximum safety in the power supply to the auxiliary equipment and maximum efficiency of the generators.
• Sices RN200 TTTT communicates via the CANBUS interface with the SICES generator controller (GC600, DST4602 Evolution) and with the power supply controllers (MC200), ensuring simple integration of all components (both for photoelectric logic and for wiring).
• Each RN200 manages up to 16 inverters (and up to 16 RN200 is managed on the system), communicates with them via the Modbus protocol, makes unlimited use of all its communication interfaces (RS232, RS485, ETHERNET). Inverters can also be of different types. From each inverter, it obtains rated power and current, as well as diagnostic alarm codes. It can start or stop inverters, as well as control their active and reactive power.
• Parameter settings can be managed directly from the front panel or from the free SICES BOARDPRF programming software on our website
• A complete and configurable history logging system available that generates recurring and event logs (up to 532 records per repository with default configuration). Historical records can be viewed on the controller display or through the HISVIEW PC software.
• This device includes a fully configurable PLC, in addition to AND/OR logic that can be combined with timers, the device can meet specific customer or application requirements.
• SICESPLCEDITOR software allows you to create and test PLC programs.
• On the TTTT Global page, you can download Sices RN 200 manual pdf

Reference: Sices HS315

Reference: Generator remote control

SICES RN 200 Specification

Connection port

• 18 configurable optically insulated digital inputs.
• 18 configurable digital outputs.
• 7 configurable analog inputs (6×0 to 10 VDC and 1×0 to 32 VDC).
• 2 configurable insulated analog outputs.
• 1 RS232 serial port (Modbus RTU slave).
• 1 RS485 insulated serial port (Modbus RTU slave).
• 1 RJ45 Ethernet port (Modbus TCP slave).
• 1 USB port (Modbus RTU slave).

Functions that can be installed

• Automatically start and stop the inverter, depending on the presence of voltage on the common bar.
• Management of automatic circuit breakers (RNCB), connection of inverters to common bars.
• Limit the active power of the inverter, to ensure generator operation at a configurable minimum power (to avoid wear and tear associated with truss work at low power).
• Set a power reserve (PSINNING RESERVE) for generators, so that they can compensate for sudden drops in the production of renewable energy sources without causing a loss of power on the load.
• Two ways of managing the inverter’s reactive power: The power system is fixed on the machine and all the rest is supplied/absorbed by the inverter. Share reactive power to generator, based on rated power.
• Ability to work OFF-GIRD (inverting mode) and ON-GIRD (parallel grid mode).
• Percentage of active and reactive power sharing between inverters.
• The percentage sharing of active and reactive power between RN200.

Methods of protection in SICES RN200

Protection for renewable sources

• Frequency reduction (2 stages), (81U).
• Frequency boost (2 stages), (81O).
• Pressure relief (2 stages), (27).
• Unbalanced voltage (46).
• Incorrect phase sequence (47).
• Overvoltage (2 stages), (59).
• Short circuit (50).
• Short circuit limiting voltage (50V).
• Overload (51).
• Overload voltage limiting (51V).

Protection for common bar

• Pressure relief (2 stages), (27).
• Unbalanced voltage (46).
• Incorrect phase sequence (47).
• Overvoltage (2 stages), (59).
• Frequency reduction (2 stages), (81U).
• Frequency boost (2 stages), (81O).

Power protection

• Pressure relief (2 stages), (27).
• Overvoltage (2 stages), (59).

Device information of SICES RN200

• Supply voltage: from 7 to 32 Vdc.
• Active power: less than 6W (225mA and 27 VDC).
• Operating frequency: 50Hz or 60Hz.
• 3″ TFT color screen with backlight.
• Graphics display resolution: 480×270 pixels.
• Operating temperature: -25oC to 60oC.
• Storage temperature: -30oC to 80oC.
• Humidity: 10-90% (no condensation).
• Standard degree of protection: IP65 (when the gasket is installed correctly).
• Weight: 1100g.
• Overall dimensions: Length 244 x Width 178 x Height 83 mm.
• Cutting board: 218 x 159 mm.
• EMC: Complies with EN61326-1.
• Safety: Built in compliance with EN61010-1.
