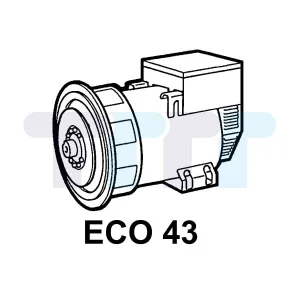

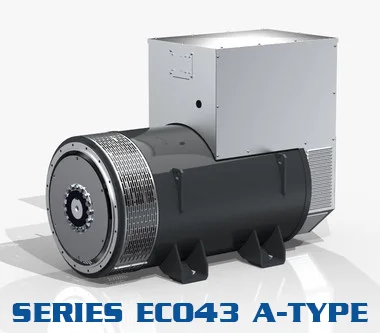

The Mecc Alte ECO43 alternator is a 1500 rpm 3-phase alternator, excited by brush and using AVR with capacities from 800kAV to 1400kVA. Mecc Alte ECO43 spare parts TTTT have many common words such as: stator depending on capacity and rack, rotor depending on capacity, bearings, DER1, … The spare parts are numbered on the alternator diagram. and has its own number to distinguish it from other parts. You can view and choose the right spare parts for your alternator.

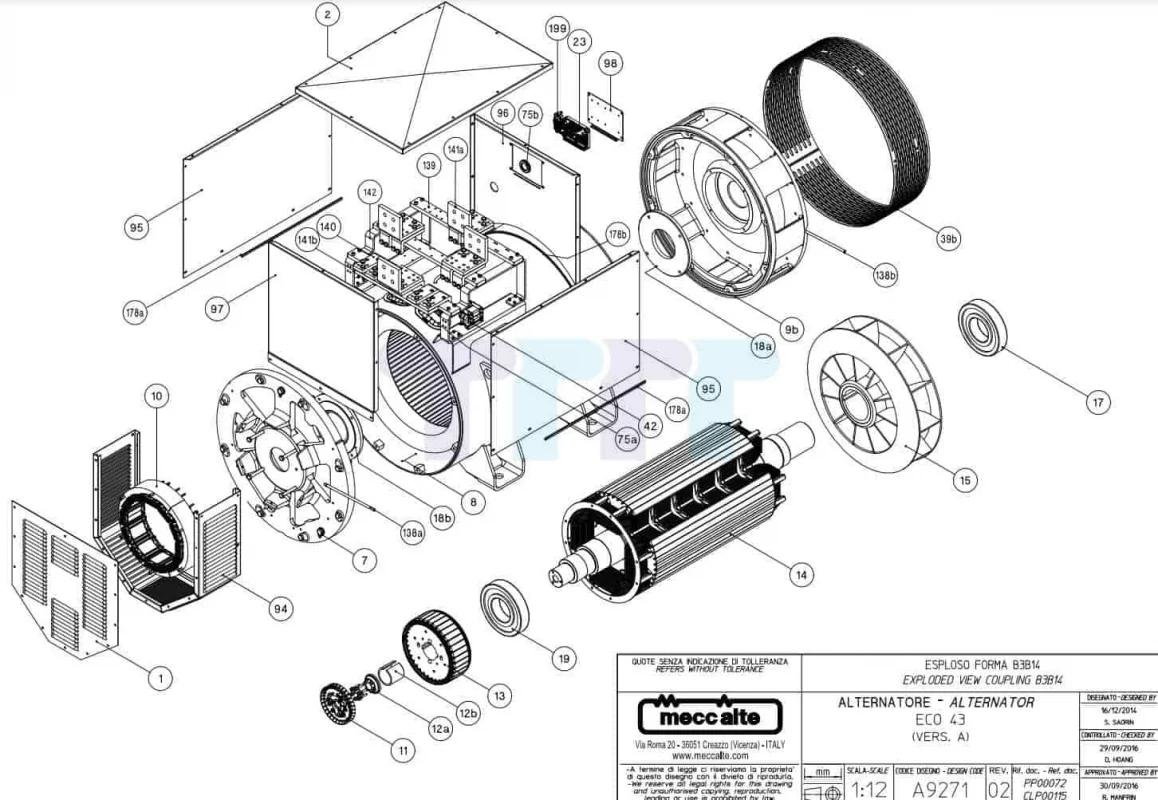

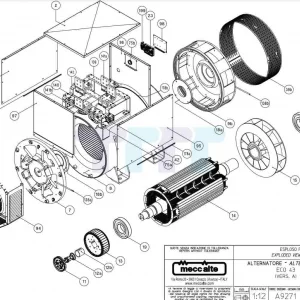

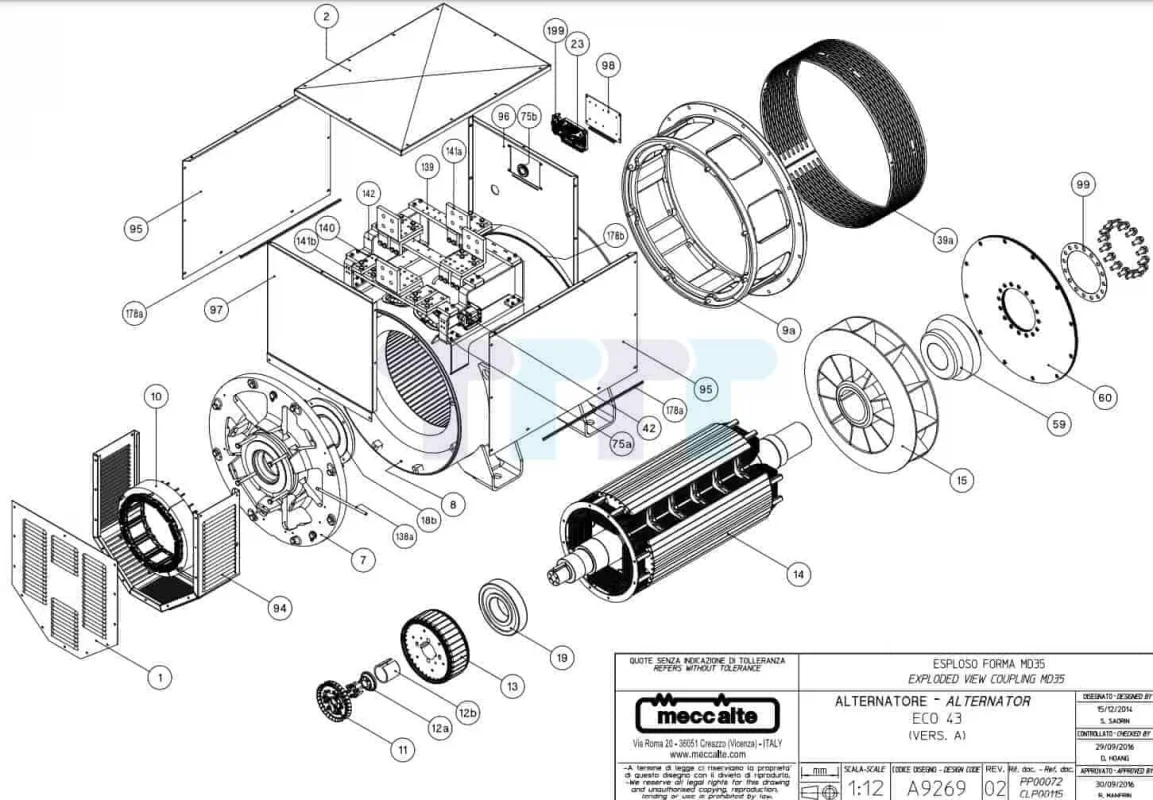

Part number, location and name of the alternator Mecc Alte ECO43
Part name (location) | Part number |
| Rear Flange (unpainted) – (1) | 9903905937 |
Top cover (unpainted) – (2) | 9903905936 |
| Drive End Face – (7) | 6102306100 |
Bracket and stator 1S A – (8) | 3501660001 |
| Bracket and stator 2S A – (8) | 3501660002 |
Bracket and stator 1M A – (8) | 3501660004 |
| Bracket and stator 2M A – (8) | 3501660005 |
Bracket and stator 2L A – (8) | 3501660006 |
| Bracket and stator VL A – (8) | 3501660007 |
Drive end bracket B14 – (9b) | 6102312487 |
| MD35/0 – (9a) drive end bracket | 6102312484 |
MD35/00 – (9a) drive end bracket | 6102312483 |
| MD35/1 – (9a) drive end bracket | 6102312485 |
Stator Alternator Exciter H-80 12P – (10) | 4500486550 |
| Alternator bridge rectifier – Diode T18/A – (11) | 6101001003 |
Safety loop excitation machine armature – (12a) | 7502225152 |
| Taper guard ring for exciter armature – (12b) | 9911153040 |
Armature H-120 12P- (13) | 4500568260 |
| Rotor 1S B14 – (14) | 2001067006 |
Rotor 2S B14 – (14) | 2001067010 |
| Rotor 1M B14 – (14) | 2001067018 |
Rotor 2M B14 – (14) | 2001067019 |
| Rotor 2L B14 – (14) | 2001067020 |
Rotor VL B14 – (14) | 2001067025 |
| Rotor 1S MD35 – (14) | 2001067108 |
Rotor 2S MD35 – (14) | 2001067110 |
| Rotor 1M MD35 – (14) | 2001067106 |
Rotor 2M MD35 – (14) | 2001067107 |
| Rotor 2L MD35 – (14) | 2001067112 |
Rotor VL MD35 – (14) | 2001067113 |
| Fan – (15) | 6102217375 |
Front Bearing 6324-2RS C3 – (17) | 9900901127 |
| Front Bearing 6324 C3 – (17) | 9900901124 |
Inner bearing cover, face NDE – (18b) | 6102315310 |
| Inner bearing cover, DE – (18a) side | 8500604021 |
Rear Bearing 6324-2RS C3 – (19) | 9900901126 |
| Rear Bearing 6324 C3 – (19) | 9900901122 |
Electronic AVR Automatic Voltage Regulator, DER1 / A – (23) | 0391600171 |
| Protective Screen B14 – (39b) | 8500626404 |
Protective Screen MD35 – (39a) | 8500626436 |
| Parallel Device PD500 – (42) | 4501090058 |
Coupling Hub SAE 14-18 – (59) | 5504012530 |
| SAE Coupling Hub 21 – (59) | 5504012531 |
10 discs SAE 14 – (60) | 6110611050 |
| 10 discs SAE 18 – (60) | 6110611060 |
12 discs SAE 21 – (60) | 6110611070 |
| Cable Gaskets – (75a) | 9909509097 |
Cable Meter DG29 – (75b) | 9909509107 |
| Back cover (unpainted) – (94) | 9903905939 |
Side Covers (unpainted) – (95) | 9903905934 |
| Front cover (unpainted) – (96) | 9903905933 |
Rear cover (unpainted) – (97) | 9903905935 |
| Panel carry x holes (unpainted) – (98) | 9903905602 |
Disc Lock Ring – (99) | 6110611520 |
| Lubrication hose 10×280 – (138a) | 9911147025 |
Lubricant hose 10×280 – (138b) | 9911147025 |
| Terminal Plate – (139) | 7501210060 |
Aluminum Terminals – (140) | 5504010026 |
| Aluminum Bridge – (141a) | 5504010051 |
Connection bar – (141b) | 5504010050 |
| Support frames for panels – (142) | 8500602130 |
Matte EPDM rubber 8.5×5.5mm (L = 1.26 m) – (178a) | 9909515360 |
| UL EPDM + SP matte rubber 15.6×8.4mm (L = 0.72 m) – (178b) | 9909515361 |
PD-I Interface for PD500 – (199) | 4505005594 |
| Safety loop excitation machine armature | 7502225151 |
Parallel device PD400 | 45010900 ** |
| Painted terminal box (2 + 75b + 2×95 + 96 + 97 + 98 + 178a + 178b) | 0391502062 |
0392050060 |
How to identify genuine Mecc Alte ECO43 spare parts
When buying spare parts for Mecc Alte are always accompanied by documents and papers to confirm genuine spare parts of 1000 kva alternator or other models of ECO43, documents provided by Mecc Alte and TTTT Global include:
- CO – Certificate of Origin.
- CQ – Quality certificate.
- Import and export certificate.
- Certificate of official authorized distribution of Mecc Alte in Vietnam and Cambodia – ECO43 alternator spare parts.
- Warranty stamp TTTT Global.
When buying Mecc Alte spare parts, customers should ask for the above documents and documents to confirm that the parts manufactured by Mecc Alte are genuine. If the above documents cannot be provided, the spare parts are not genuine.
References: Mecc Alte ECO40 spare parts
References: Mecc Alte DSR
Instructions on how to find and order genuine Mecc Alte ECO43 spare parts.
How to find genuine Mecc Alte ECO43 spare parts.
There are many ways to find Mecc Alte generator parts, but to find genuine Mecc Alte parts, there are 3 ways:
- Option 1: Go to Mecc Alte homepage to find spare parts and contact Mecc Alte or TTTT Global as Mecc Alte representative in Vietnam .
- Method 2: Go to TTTT Global homepage to find Mecc Alte spare parts and choose the right spare part for your player based on your player model, after finding the right part can contact TTTT Global and provide the part name, part number, part location and quantity for TTTT Global to quote and best delivery time to you.
- Method 3: Contact TTTT Global and provide information such as model name, part name and quantity. TTTT Global will give you product information and part number as well as the exact location for TTTT Global to quote the best price and delivery time to you.
Genuine Mecc Alte spare ECO43 parts orders.
- First of all, you need to contact and confirm the correct part you need to find with TTTT Global – ECO 43 Alternator Spare Parts.
- Then TTTT Global will give you the best price and delivery time.
- When you have fixed the price, you will make a deposit and pay TTTT Global.
- After the goods are in stock TTTT Global will notify and receive the remaining payment before delivery .
- You can go to TTTT Global warehouse in Ho Chi Minh City or Binh Duong warehouse. Attached with spare parts are full valid import documents.
- We also provide replacement, maintenance and repair services for Mecc Alte alternators.
Mecc Alte spare parts at TTTT Global
TTTT Global is the only Mecc Alte dealer in Vietnam and Cambodia, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
