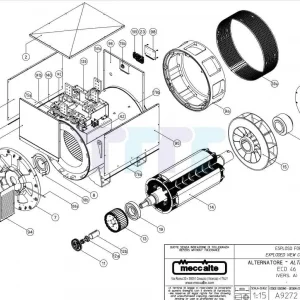

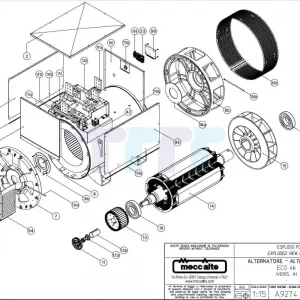

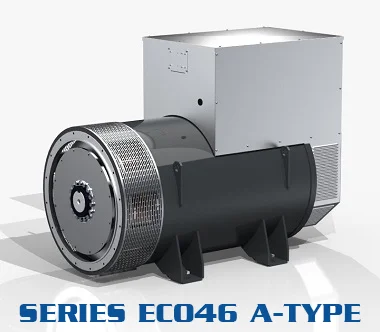

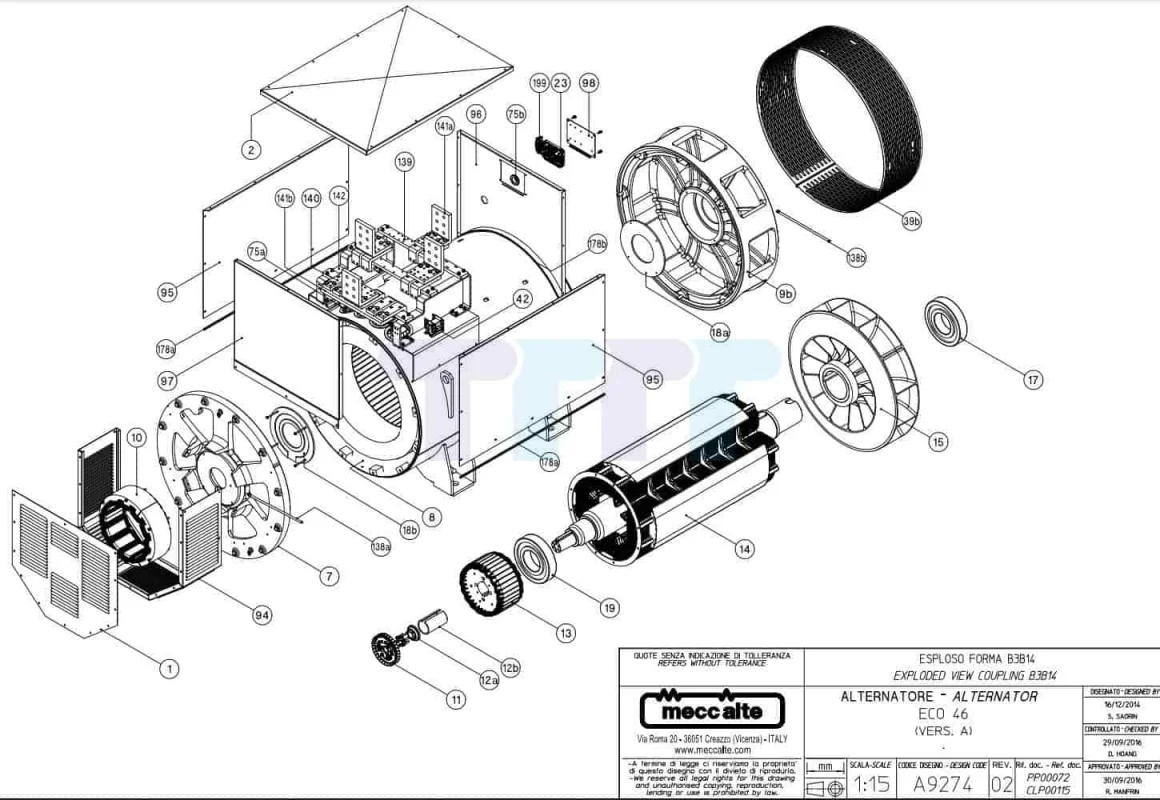

The Mecc Alte ECO46 alternator is a 3-phase alternator with slow rewinding at 1500 rpm, excitation by brush and using AVR with capacities from 1500kAV to 2800kVA. Mecc Alte ECO46 spare parts TTTT have many common words such as: stator depending on capacity and rack, rotor depending on capacity, bearings, AVR, … The spare parts are numbered on the alternator diagram. and has its own number to distinguish it from other parts. You can view and choose the right spare parts for your alternator.
Part number, location and name of Mecc Alte ECO46
|
Parts Name (location) |
Part number |
| Rear flange (unpainted)- (1) |
9903905947 |
|
Top cover (unpainted)- (2) |
9903905946 |
| Drive end face – (7) |
6102306096 |
|
Bracket and stator 1S A – (8) |
3501670001 |
| Stand and stator 1.5S A – (8) |
3501670002 |
|
Bracket and stator 2S A – (8) |
3501670003 |
| Bracket and stator 1L A – (8) |
3501670004 |
|
Stand and stator 1.5L A – (8) |
3501670005 |
| Bracket and stator 2L A – (8) |
3501670006 |
|
Bracket and stator VL A – (8) |
3501670007 |
| Drive end bracket B14 – (9b) |
6102312497 |
|
Drive end bracket MD35 / 0 – (9a) |
6102312491 |
| Drive end bracket MD35/00 – (9a) |
6102312492 |
|
Stato H-120 12P – (10) |
4500486560 |
| Generator diode T18/A – (11) |
6101001003 |
|
Safety loop excitation machine armature – (12a) |
7502225152 |
| Cone protection ring for Alternator Exciter armature – (12b) |
9911153041 |
|
Armature H-120 12P- (13) |
4500568270 |
| Rotor 1S B14 – (14) |
2001071001 |
|
Rotor 1.5S B14 – (14) |
2001071026 |
| Rotor 2S B14 – (14) |
2001071002 |
|
Rotor 1L B14 – (14) |
2001071003 |
| Rotor 1.5L B14 – (14) |
2001071027 |
|
Rotor 2L B14 – (14) |
2001071004 |
| Rotor VL B14 – (14) |
2001071*** |
|
Rotor 1S MD35 – (14) |
2001071101 |
| Rotor 1.5S MD35 – (14) |
2001071115 |
|
Rotor 2S MD35 – (14) |
2001071102 |
| Rotor 1L MD35 – (14) |
2001071103 |
|
Rotor 1.5L MD35 – (14) |
2001071116 |
| Rotor 2L MD35- (14) |
2001071104 |
|
Rotor VL MD35 – (14) |
2001071105 |
| Fan – (15) |
6102217380 |
|
Front bearing 6330 C3 – (17) |
9900901125 |
| Inner bearing cover, DE face – (18a) |
8500604031 |
|
Inner bearing cover, NDE face – (18b) |
8500604035 |
| Rear bearing 6324-2RS C3 – (19) |
9900901127 |
|
Rear bearing 6324 C3 – (19) |
9900901124 |
| Electronic Auto Voltage Controller, DER1 / A – (23) |
0391600171 |
|
Protective screen B14 – (39b) |
8500626446 |
| Protective screen MD35 – (39a) |
8500626441 |
|
Parallel device PD500 – (42) |
4501090058 |
| SAE 18 coupling hub – (59) |
5504012545 |
|
SAE 21 coupling hub – (59) |
5504012546 |
| 15 SAE 18 discs- (60) |
6110611060 |
|
17 SAE 21 discs- (60) |
6110611070 |
| Cable Gasket – (75a) |
9909509097 |
|
Cable Meter DG29 – (75b) |
9909509107 |
| Back cover (unpainted) – (94) |
9903905949 |
|
Side covers (unpainted) – (95) |
9903905944 |
| Rear cover (unpainted) – (96) |
9903905943 |
|
Front cover (unpainted) – (97) |
9903905945 |
| Panel carry x holes (unpainted) – (98) |
9903905602 |
|
Disc locking ring – (99) |
6110611520 |
| Lubrication hose 10×380 – (138a) |
9911147035 |
|
Lubrication hose 10×380 – (138b) |
9911147035 |
| Terminal board – (139) |
7501210060 |
|
Aluminum terminals – (140) |
5504010036 |
| Aluminum Bridge – (141a) |
5504010053 |
|
Connection bar – (141b) |
5504010060 |
| Support frame of the panels – (142) |
8500602131 |
|
Matte EPDM rubber 8.5×5.5mm (L = 1.58 m) – (178a) |
9909515360 |
| UL EPDM + SP matte rubber 15.6×8.4mm (L = 0.90 m) – (178b) |
9909515361 |
|
PD-I interface for PD500 – (199) |
4505005594 |
| Safety loop excitation machine armature |
7502225151 |
|
Painted terminal box (2 + 75b + 2×95 + 96 + 97 + 98 + 178a + 178b) |
0391502072 |
| USB2DxR Kit |
0392050060 |
How to identify genuine Mecc Alte ECO46 spare parts
When buying spare parts for Mecc Alte are always accompanied by documents and papers to confirm genuine spare parts of 2000 kva alternator or other models of ECO46, documents provided by Mecc Alte and TTTT Global include:
- CO – Certificate of Origin – Spare parts for alternators ECO46.
- CQ – Quality certificate – ECO46 alternator spare parts.
- Import and export certificate – Alternator spare parts ECO46.
- Certificate of official authorized distribution of Mecc Alte in Vietnam and Cambodia – ECO46 alternator spare parts.
- TTTT Global warranty stamp – ECO46 alternator spare parts.
When buying Mecc Alte spare parts, customers should ask for the above documents and documents to confirm that the parts manufactured by Mecc Alte are genuine. If the above documents cannot be provided, the spare parts are not genuine.
References: Mecc Alte DER1
References: Mecc Alte ECO43 Spare parts
Instructions on how to find and order genuine Mecc Alte ECO46 spare parts
How to find genuine Mecc Alte ECO46 spare parts
There are many ways to find Mecc Alte spare parts, but to find genuine Mecc Alte parts, there are 3 ways:
- Option 1: Go to Mecc Alte homepage to find spare parts and contact Mecc Alte or TTTT Global as the representative of Mecc Alte in Vietnam.
- Method 2: Go to TTTT Global homepage to find Mecc Alte spare parts and choose the right spare part for your player based on your player model, after finding the right part can contact TTTT Global and provide part name, part number, part location and quantity for TTTT Global to quote and best delivery time to you.
- Method 3: Contact TTTT Global and provide information such as model name, part name and quantity. TTTT Global will give you product information and part number as well as the exact location for TTTT Global to quote and best delivery time to you.
Genuine Mecc Alte ECO46 spare parts orders
- First of all, you need to contact and confirm the correct part you are looking for with TTTT Global.
- Then TTTT Global will give you the best price and delivery time.
- When you have fixed the price, you will make a deposit and pay TTTT Global.
- After receiving goods TTTT Global will notify and receive the remaining payment before delivery.
- You can go to TTTT Global warehouse in Ho Chi Minh City or Binh Duong warehouse. Attached with spare parts are full valid import documents.
- We also provide replacement, maintenance and repair services for Mecc Alte alternators.
Mecc Alte spare parts at TTTT Global
TTTT Global is the only authorized Mecc Alte distributor in Vietnam and Cambodia, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
