The Mecc Alte ET alternator is a single-phase alternator with a speed of 3000 rpm, powered by source and using AVR with capacities from 5.5kAV to 13.5A divided into 2 types ET16 and ET20. Mecc Alte ET spare parts TTTT have many common words such as: High capacity and rack, Power rotor, bearings, DSR, … The spare parts are numbered on the alternator map and have private number of code for partition to the other substitution. You can view and choose the right spare parts for your alternator.

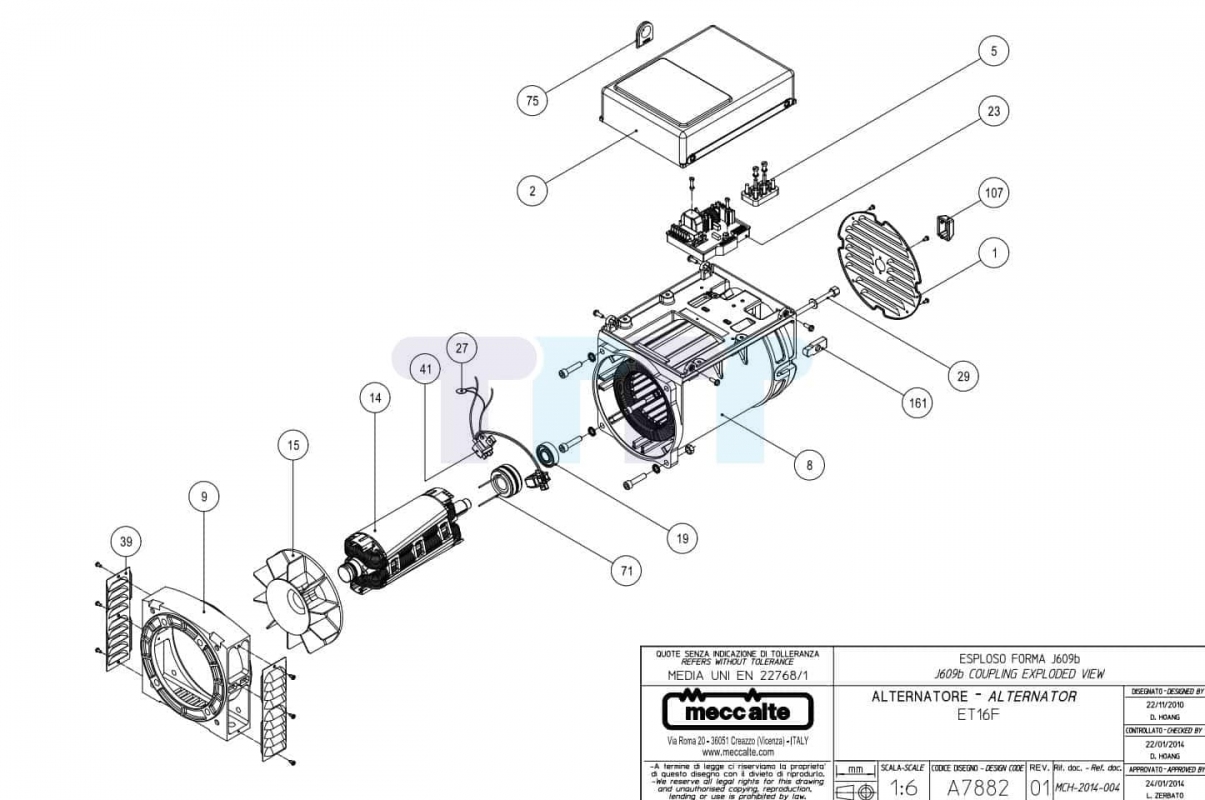

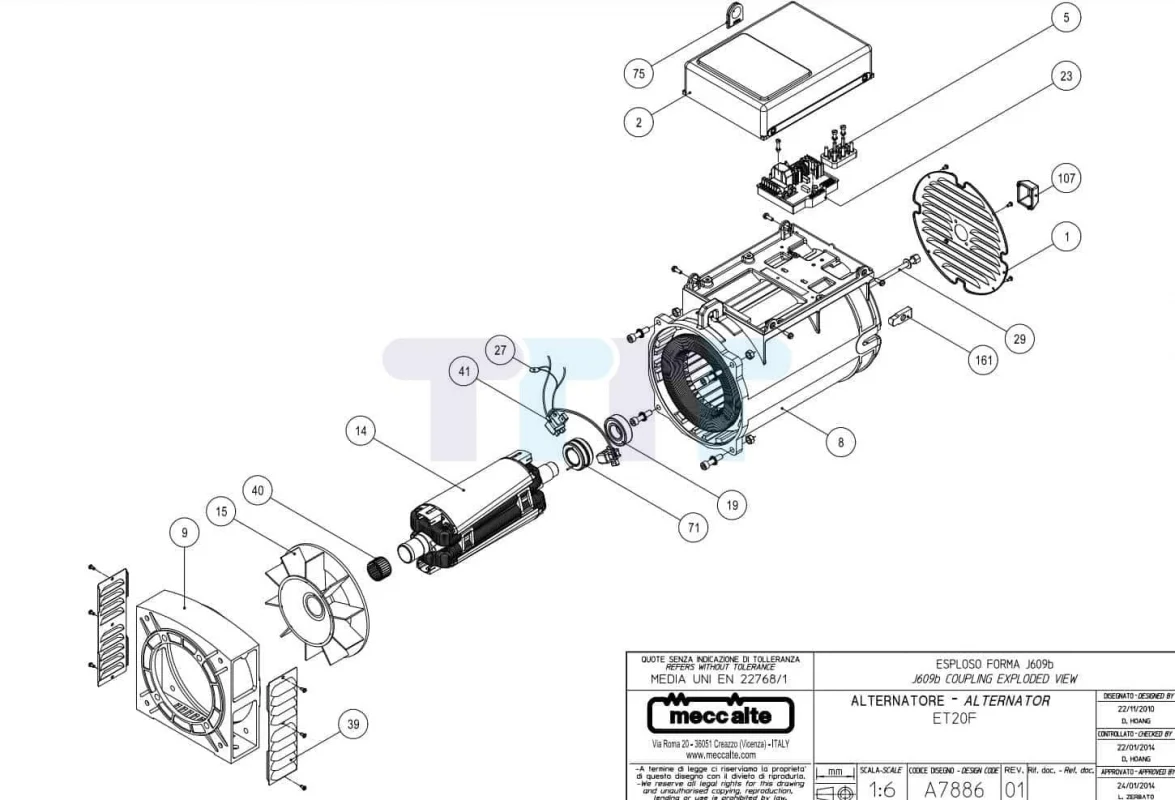

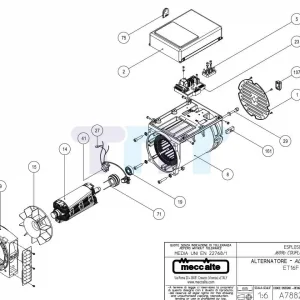

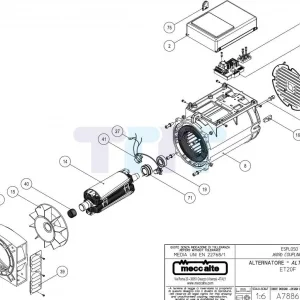

Number, location and spare parts of Mecc Alte ET
Part name (location) | Part number |
| Alternator rear cover – (1) | 9903906150 |
Metal Terminal Box Cover – (2) | 9903906156 |
| Plastic Terminal Box Cover – (2) | 9903906370 |
RCM2 – (5) | 9909915060 |
| Stand and Stator 5.5kVA (230/400 V, 50 Hz) – (8) Stand and Stator 6.5kVA (230/400 V, 50 Hz) – (8) Bracket and Stator 9kVA (230/400 V, 50 Hz) – (8) Bracket and Stator 11.5kVA (230/400 V, 50 Hz) – (8) Bracket and Stator 13.5kVA (230/400 V, 50 Hz) – (8) | |
Drive End Bracket B9 – (9) | |
| Drive End Bracket B14 – (9) | 6102208405 |
Rotor 5.5kVA (130) – (14) Rotor 6.5kVA (160) – (14) Rotor 9kVA (200) – (14) Rotor 11.5kVA (FS-160) – (14) Rotor 13.5kVA (F-160) – (14) | |
Fan – (15) | 9909514058 |
| Front Bearing 6205-2RS – (17) | 9900905055 |
Rear Bearing 6203-2Z C3 – (19) | 9900903030 |
| Electronic Auto Voltage Regulator ASR – (23) | 4505005150 |
Surge Capacitors – (27) | 9910384007 |
| Safety Rivets – (29) | |
Shield – (39) | 9903907147 |
| ET/ES brush gear assembly with surge arrester x ASR – (41) | 6101501043 |
ET/ES brush gear assembly without surge arrester x ASR – (41) | 6101501022 |
| Slip Ring 50x22x8 – (71) | 9909918015 |
Rubber Pads – (107) | 9909505005 |
| Rubber Cap – (161) | 9909509050 |
References: Mecc Alte ES spare parts
References: Mecc Alte SR7
How to identify genuine Mecc Alte ET spare parts
When buying spare parts for Mecc Alte, it is always accompanied by documents and papers to confirm genuine spare parts of 5kw 3 phase alternator, documents provided by Mecc Alte and TTTT Global include:
- CO – Certificate of Origin
- CQ – Quality certificate
- Import and export certificate
- Mecc Alte Official Authorized Distributor Certificate in Vietnam and Cambodia
- Warranty stamp TTTT Global
When buying Mecc Alte spare parts, customers should ask for the above documents and documents to confirm that the parts manufactured by Mecc Alte are genuine. If the above documents cannot be provided, the spare parts are not genuine.
Instructions on how to find and order genuine Mecc Alte ET spare parts
How to find genuine Mecc Alte spare parts
There are many ways to find Mecc Alte Spa generator parts, but to find genuine Mecc Alte parts, there are 3 ways:
- Method 1: Go to Mecc Alte homepage to find spare parts and contact Mecc Alte or TTTT Global who are representatives of Mecc Alte in Vietnam.
- Method 2: Go to TTTT Global homepage to find Mecc Alte spare parts and choose the right spare part for your player based on your player model, after finding the right part can contact TTTT Global and provide the part name, part number, part location and quantity for TTTT Global to quote and best delivery time to you.
- Method 3: Contact TTTT Global and provide information such as model name, part name and quantity. TTTT Global will give you product information and part numbers as well as the exact location for TTTT Global to quote the best price and delivery time to you.
Genuine Mecc Alte spare parts orders
- First of all, you need to contact and confirm the correct part you are looking for with TTTT Global .
- Then TTTT Global will give you the best price and delivery time.
- When you have fixed the price, you will make a deposit and pay TTTT Global.
- After the goods are in stock TTTT Global will notify and receive the remaining payment before delivery.
- You can go to TTTT Global warehouse in Ho Chi Minh City or Binh Duong warehouse. Attached with spare parts are full valid import documents.
- We also provide replacement, maintenance, and repair services for Mecc Alte alternator.
Mecc Alte spare parts at TTTT Global
TTTT Global is the only authorized Mecc Alte distributor in Vietnam and Cambodia, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
