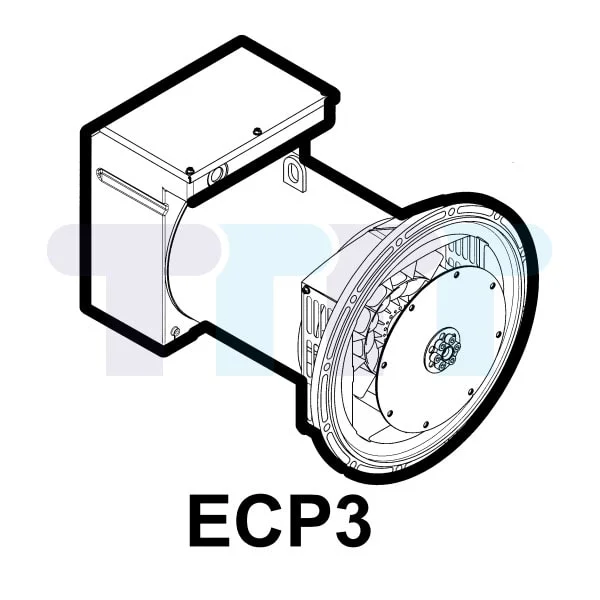

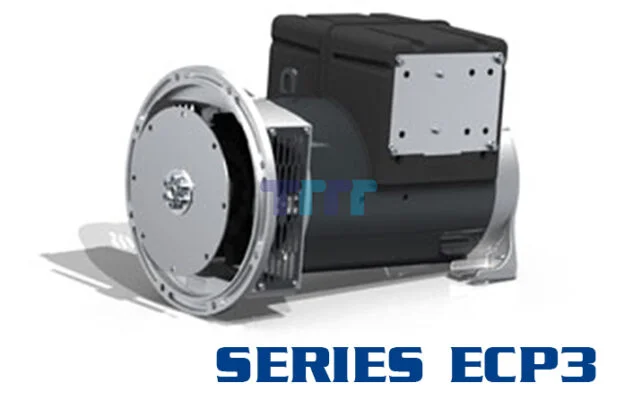

The Mecc Alte ECP3 alternator is a 1500 rpm 3-phase alternator, excited by brush and using AVR with capacities from 7kAV to 15kVA. Mecc Alte ECP3 spare parts TTTT have many common types such as: stator depending on capacity and rack, rotor depending on capacity, bearings, DSR, … The spare parts are numbered on the alternator diagram. and has its own number to distinguish it from other parts. You can view and choose the right spare parts for your alternator.

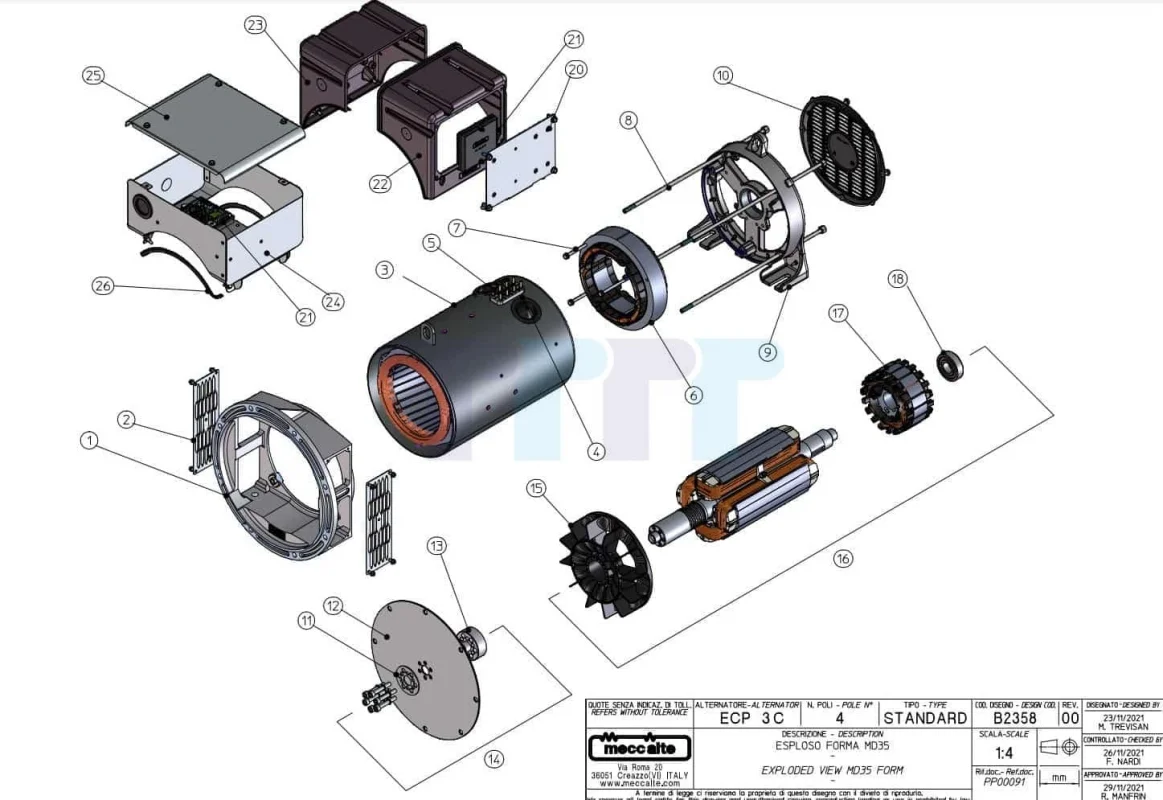

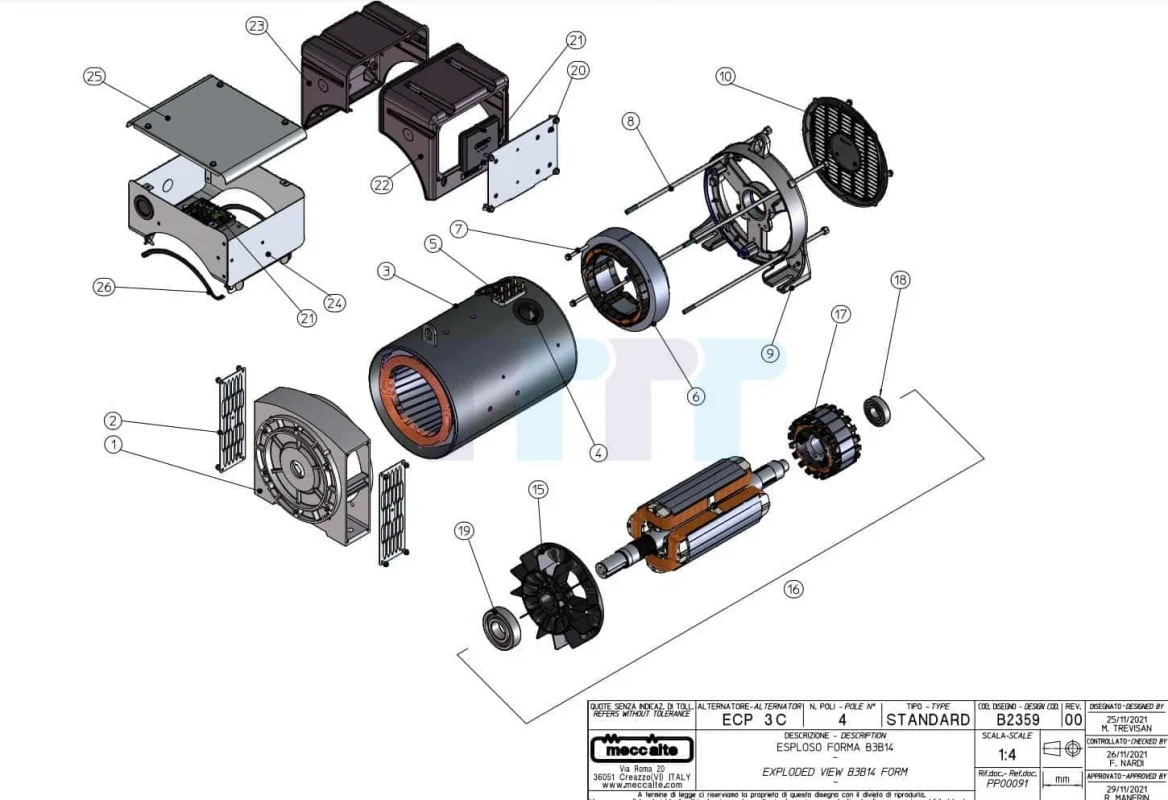

Part number, location and name of Mecc Alte ECP3 spare parts
Part name (location) | Part number |
| Bracket Drive End Bracket B 14 (unpainted) – (1) | 6102208505 |
MD35/3 drive end bracket (unpainted) – (1) | 6102312035 |
| MD35/4 drive end bracket (unpainted) – (1) | 6102208374 |
MD35/5 drive end bracket (unpainted) – (1) | 6102208375 |
| B9/ 30 12F drive end bracket (unpainted) – (1) | 6102208510 |
J609B F146 drive end bracket (unpainted) – (1) | 6102208360 |
| J609B F163.6 drive end bracket (unpainted) – (1) | 6102208361 |
J609B F177.7 drive end bracket (unpainted) – (1) | 6102208362 |
| 1 x screen protector B14 B9 MD35, ECP 3C (2 pieces each) – (2) | 8500626091 |
Bracket and stator 1S/4C (unpainted) – (3) | 3501610001 |
| Bracket and stator 2S/4C (unpainted) – (3) | 3501610002 |
Bracket and stator 1L/4C (unpainted) – (3) | 3501610003 |
| Bracket and stator 2L/4C (unpainted) – (3) | 3501610004 |
3L/4C stand and stator (unpainted) – (3) | 3501610005 |
| 1 x Cable gland, 50mm (2 pcs each) – (4) | 9909509045 |
Terminal board 76×36, 8 pins M5 – (5) | 9909915061 |
| Stator Exciter H-40 – (6) | 4500478657 |
1 x Exciter holder (3 pcs per machine) – (7) | 6110605266 |
| 1 x Cover Holder S, ECP 3C (4 pcs each) – (8) | 9911190288 |
ECP 3C drive end bracket (unpainted) – (9) | 6102204172 |
Generator Back Cover – (10) | 9909513308 |
| Disc locking washers – (11) | 6110611508 |
1 x SAE 6.5 Disc (3 pcs each) – (12) | 6110611150 |
| 1 x SAE 7.5 Disc (3 pcs each) – (12) | 6110611152 |
1 x SAE 8 Disc (3 pcs each) – (12) | 6110611154 |
| 1 x SAE 10 Disc (3 pcs each) – (12) | 6110611156 |
1 x SAE Disk 11.5 (3 pcs each) – (12) | 6110611158 |
| Gaskets vol 8 – 10 – (13) | 7502212040 |
SAE 6.5 (11 + 3×12) disc coupling disc set – (14) | 0391704802 |
| SAE disc coupling disc set 7.5 (11 + 3×12) – (14) | 0391704803 |
SAE 8 articulated disc set (5×11 + 3×12 + 13) – (14) | 0391704804 |
| SAE 10 disc coupling disc set (11 + 3×12 + 13) – (14) | 0391704805 |
SAE 11.5 (6×11 + 3×12) disc coupling disc set – (14) | 0391704806 |
| Fan MD35 – d50 – (15) | 9909514076 |
Fan B14 B9 – d40 – (15) | 9909514075 |
| Rotor 1S/4-4C MD35 – (16) | 2001018006 |
Rotor 2S/4-4C MD35 – (16) | 2001018007 |
| Rotor 1L/4-4C MD35 – (16) | 2001018008 |
Rotor 2L/4-4C MD35 – (16) | 2001018009 |
| Rotor 3L/4-4C MD35 – (16) | 2001018010 |
Rotor 1S/4-4C B14 – (16) | 2001018001 |
| Rotor 2S/4-4C B14 – (16) | 2001018002 |
Rotor 1L/4-4C B14 – (16) | 2001018003 |
| Rotor 2L/4-4C B14 – (16) | 2001018004 |
Rotor 3L/4-4C B14 – (16) | 2001018005 |
| Exciter H-40 6P armature + diodes – (17) | 4500568151 |
Rear Bearing 6305-2RS C3 – (18) | 9900905095 |
| Front Bearing 6308-2RS C3 – (19) | 9900905110 |
Carrying Panel (unpainted) – (20) | 9903910035 |
| Electronic AVR Automatic Voltage Regulator DSR – (21) | 4505005560 |
Plastic terminal block, AVR side (unpainted) – (22) | 9909513326 |
| Plastic terminal box, sealed (unpainted) – (23) | 9909513321 |
Terminal Box (unpainted) – (24) | 7510603401 |
| Terminal box cover (unpainted) – (25) | 9903910019 |
Matte EPDM rubber outsole. 8.5×5.5mm, L = 0.60 m – (26) | 9909515360 |
| 1 x Diode (generator diode) for exciter armature (6 pieces for each machine) | 9910355030 |
Metal Terminal Kit (optional), painted (24 + 25 + 26) | 0391502102 |
| Kit plastic terminal box (standard), unpainted (20 + 22 + 23) | 0391402095 |
1 x Cover for MD35/3 DE frame (6 pieces for each machine) | 9909505014 |
| ECP 3-S B9 / 30 . Safety Rivet | 9911190382 |
Safety rivet ECP 3-S B9 / 25.4 | 9911190580 |
| USB2DxR Kit | 0392050060 |
References: Mecc Alte T spare parts
References: Mecc Alte DSR
How to identify genuine Mecc Alte ECP3 spare parts
When purchasing Mecc Alte spare parts, documents are always attached to confirm genuine spare parts of Mecc Alte 3 phase alternator ECP3, documents provided by Mecc Alte and TTTT Global include:
- CO – Certificate of Origin.
- CQ – Certificate of quality.
- Import and export certificate.
- Certificate of official authorized distribution of Mecc Alte in Vietnam and Cambodia.
- TTTT Global warranty stamp.
When buying Mecc Alte spare parts, customers should ask for the above documents and documents to confirm that the parts manufactured by Mecc Alte are genuine. If the above documents cannot be provided, the spare parts are not genuine.
Instructions on how to find and order genuine Mecc Alte ECP3 spare parts
How to find genuine Mecc Alte ECP3 spare parts
There are many ways to find Mecc Alte generator parts, but to find genuine Mecc Alte parts, there are 3 ways:
- Option 1: Go to Mecc Alte homepage to find spare parts and contact Mecc Alte or TTTT Global who are representatives of Mecc Alte in Vietnam.
- Method 2: Go to TTTT Global homepage to find Mecc Alte spare parts and choose the right spare part for your player based on your player model, after finding the right part can contact TTTT Global and provide the part name, part number, part location and quantity for TTTT Global to quote and best delivery time to you.
- Method 3: Contact TTTT Global and provide information such as model name, part name and quantity. TTTT Global will give you product information and part number as well as the exact location for TTTT Global to quote the best price and delivery time to you.
Genuine Mecc Alte ECP3 spare parts orders
- First of all, you need to contact and confirm the correct spare parts you need to find with TTTT Global .
- Then TTTT Global will give you the best price and delivery time.
- Once you have fixed the price, you will deposit and pay TTTT Global .
- After receiving goods TTTT Global will notify and receive the remaining payment before delivery.
- You can go to TTTT Global warehouse in Ho Chi Minh City or Binh Duong warehouse. Attached with spare parts are full valid import documents.
- We also provide replacement, maintenance and repair services for Mecc Alte alternators.
Mecc Alte spare parts at TTTT Global
TTTT Global is the only authorized dealer of Mecc Alte Cambodia and Vietnam, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
