24V, 20A Battery charger [UK Made] – Mecc Alte Smartcharge

SmartCharge 24v 20a battery charger provides a cost effective solution to most industrial battery charging requirements.

Utilizing the latest high efficiency switch-mode technology and microprocessor control, the SmartCharge 500-LC 24v 20a battery charger TTTT is suitable for charging most sealed or flooded batteries and is easily calibrated by the end user to suit the battery type. The 24 volt 20 amp battery charger with multi-stage intelligent charging characteristic ensures accurate and efficient battery charging and is designed for permanent connection to the batteries maintaining them in a fully charged condition without overcharging.

The SmartCharge 500-LC generator battery charger is fully protected against overload, reverse battery connection, over voltage and over temperature.

Totally only 1 model: 24 volt 20 amp battery charger

24v 20a battery charger input specification

• Voltage range 100 – 264V AC
• Frequency 47 – 63Hz
• Maximum input current 5.5A
• Current leakage: <2mA/240VAC

Reference: 12 volt 6 amp battery charger

Reference: 12 volt 10 amp battery charger

24v 20a battery charger output specification

• Voltage / Current – Other voltages on request

+ MAS 2024R 24V-10A :

• Ripple and noise ±0.5%
• Regulation current ± 0.5%
• Regulated load ± 1.0%
• Efficiency up to 92%
• Overload protection: Constant current limiting/folding
• Overheat protection: Automatic recovery combination output interrupt
• Reverse Battery Protection: Automatic protection, disabled when in PSU mode.

24 volt 20 amp battery charger warnings and level

• Output voltage DC

+ MAS 2024R 24V-10A : Stage: Float = 27,6V

Stage: Boost (Bulk / Absorb) = Float + 4%

• AC/charger failed: AC input or DC output voltage control lost
• Low DC voltage alarm: Float voltage drop 12%: Alarm, drop 8%: Reset
• High DC voltage alarm: Float voltage increase 7%: Alarm, increase 5%: Reset
• Overvoltage protection:

+ MAS 2024R 24V-20A : 30.5V instantaneous lockout

• Battery Disconnect: Open circuit on DC output (Disabled in PSU mode)

Mecc alte Smartcharge isolation

• Withstand voltage: Input – Output 1.5kV AC
• Isolation resistance: Input – Output 500V DC / 100M Ohms

24v 20a battery charger environmental specification

• Working temperature -10ºC to +50ºC
• Working humidity 20 – 90% RH
• Storage temperature -20ºC to +85ºC
• Storage humidity 10 – 95% RH
• Unpacked weight 1.700 grams

Manufacturing material of 24 volt 20 amp battery charger

Aluminum / RAL9005 black fine texture

Fail alarm relay contact set of Mecc Alte Smartcharge

Volt-free form C relay contact set for signaling of a fault alarm condition. The relay contacts de-energize 60 seconds after a fault occurs. The over voltage protection shutdown alarm de-energies the contacts instantly.

24v 20a battery charger termination

AC input and DC output:

Connections terminate to rising clamp screw terminals and will accept 6.0mm2 stranded cable.

Optional error alarm:

Connections terminate to rising clamp screw terminals and will accept 2.5mm2 stranded cable.

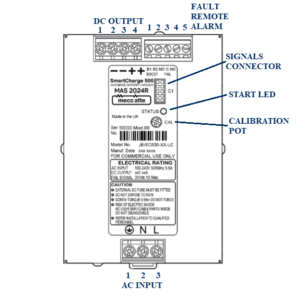

Connector ‘C1’ (signal):

Pins 7 and 8 must be linked when the charger is also acting as a PSU.

NOTE: Reverse battery alarm and battery disconnect are disabled in PSU mode. The remaining pins are for expansion module, communication interface, firmware upgrade, etc. and should not be used.

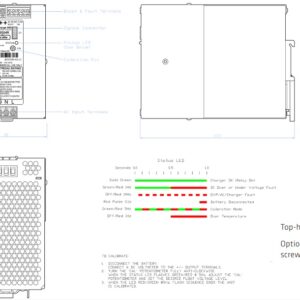

Size  & interface of Mecc Alte Smartcharge

Features of SmartCharge

• Cost-effective

• Microprocessor control

• Compact size

• Closed electronic structure

• Powerful and highly reliable

• Automatic multi-stage charging

• Use allows continuous download

• Protection measures:

– High and overloaded

– Overvoltage

– Over temperature

– Reverse battery

• Universal AC input range

• Low Noise

• Natural cooling

• Simple calibration process

• Comprehensive alarm monitoring

• Optional fault alarm intercom

• Ul approved for UL1236 Edition 8

• cUL approved according to CSA C22.2 No.107.2-01 edition 2

Applications of SmartCharge

Power generator and main source; Car ; Alarm system ; Maritime ; Industrial control system; Powerful PSUs ; Mobile device.
