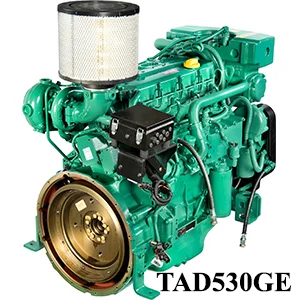

Volvo Penta TAD530GE engine – 80kva / 88kva generator

TAD530GE – 1500rpm , 74kW (~ 80 kva) at Prime, 83kW at Standby

TAD530GE Volvo Penta engines for sale, used for 80kva generator

• Brand: VOLVO PENTA
• Made in: Germany
• Model: TAD530GE
• Prime: 74kW
• Stand by: 83kW
• 4 Stroke diesel engine with direct injection
• Turbocharged
• Control system: Mechanical

TAD 530 GE Number of cylinders

• 4 cylinders
• Displacement: 4,76 liter
• Bore: 108 mm
• Stroke: 130 mm
• Compression ratio : 18:1

Volvo TAD530GE Starter system

• Electric started
• Alternator:

+ Made by: Bosch

+ Output : 55A

+ Automatic pressure regulator

• Starter motor:

+ Made by : Melco

+ Type: 105P70

+ Power: 3.1 kW

+ Voltage: 12V / 24V

Reference: Volvo Penta TAD531GE

Reference: Volvo Penta parts near me

Volvo TAD 530 GE Shutdown system

• Electric shutdown
• 24VDC coil to stop motor

TAD530GE Cooling system

• Cooled by circulating water combined with axial fans
• Cooling water tank cap is able to protect over pressure in cooling water tank
• Protection barrier

Volvo Penta TAD530GE Exhaust system

• Silent pipe
• Emissions escaped Vietnam standards for engine exhaust

TAD 530 GE Fuel system

• Fuel transfer pump: hand pump (primer pump) and machine pump (high pressure pump)
• Speed governor : Mechanical

Volvo Penta TAD 530 GE Fuel type

• Dầu DO / Diesel oil

Volvo Penta Lub oil system

• Lubricating oil capacity: 13 liter
• Lubricating oil consumption: 0,08 liter/h

TAD530GE Fuel consumption

• 100% at Prime: 231g/kWh
• 75% at Prime: 219g/kWh
• 50% at Prime: 196g/kWh

Volvo TAD 530 GE Radiators

• Circulating heat exchanger in copper

TAD530GE Air filter

• Dry paper filter, can be removed, maintained and replaced easily
• Efficient: 99,99 %

Information can be changed by Volvo Penta without notice.
