VOLVO PENTA TAD840GE-B – 1500rpm, 177kW at Prime, 194kW at Standby / 1800rpm, 194kW at Prime, 213kW at Standby – Engine are followed by RoHs2 standard.
| VOLVO_PENTA_MODEL | ORIGIN |
| Volvo Penta TAD840GE-B TTTT | INDIA |
Volvo Penta TAD840GE-B engine – has the same sticker as Volvo Penta TAD841GE, TAD842GE engines, TAD843GE only differs in size

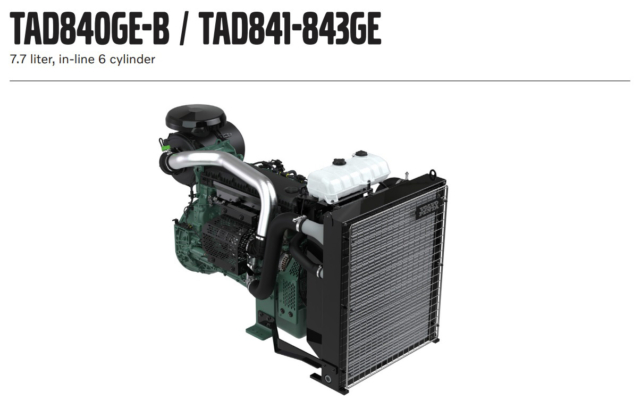

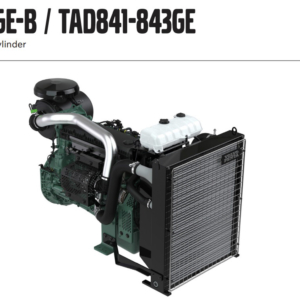

Volvo Penta Engine TAD840GE-B
(Volvo Penta engine for sale, used for 200kva generator)
– Original: VOLVO PENTA – VOLVO GROUP
– Made in: India
– Model: TAD840GE-B
– Prime: 1500Rpm – 177kW / 1800Rpm – 194kW
– Stand by: 1500Rpm – 194kW / 1800Rpm – 213kW
– 4 Stroke diesel engine with direct injection
– Turbocharged
Number of cylinders of Volvo TAD 840 GE – B
Volvo TAD 840 GE – B
– 6 cylinders
– Displacement: 7,70 liter
– Bore: 110 mm
– Stroke: 135 mm
– Firing order: 1-4-2-6-3-5
– Compression ratio : 17.5:1
Starter system of Volvo Penta TAD840GE – B
Volvo Penta TAD840GE – B manual
– Electric started
– Alternator:
+ Made by: Mitsubishi
+ Output : 110A
+ Automatic pressure regulator
– Starter motor:
+ Made by : SEG
+ Type: HXF88
+ Power: 5,6 kW
+ Voltage: 24V
Shutdown system
– Electric shutdown
– 24VDC coil to stop motor
Cooling system
– Cooled by circulating water combined with axial fans
– Cooling water capacity : 19 liter
– Cooling water tank cap is able to protect over pressure in cooling water tank
– Fan power : 12 kW
– Protection barrier
Exhaust system
– Silent pipe
– Emissions escaped Vietnam standards for engine exhaust
Fuel system
– Fuel transfer pump: hand pump (primer pump) and machine pump (high pressure pump)
– Speed governor : Electronic EMS2.4
Fuel type
Diesel oil
Lub oil system
– Forced lubrication + self swing
– Lubricating oil filter installed in the proper position, replace easily
– Lubricating oil capacity: 25 liter
– Lubricating oil consumption: 0,02 liter/h
Fuel consumption
| Running at Prime power | ||
| Load % | 1500 Rpm | 1800 Rpm |
| 25 | 225g/kWh | 237g/kWh |
| 50 | 204g/kWh | 208g/kWh |
| 75 | 202g/kWh | 203g/kWh |
| 100 | 205g/kWh | 204g/kWh |
| Running at Standby power | ||
| Load % | 1500 Rpm | 1800 Rpm |
| 25 | 221g/kWh | 234g/kWh |
| 50 | 202g/kWh | 207g/kWh |
| 75 | 203g/kWh | 203g/kWh |
| 100 | 206g/kWh | 204g/kWh |
Radiators
Circulating heat exchanger in copper
Air filter
– Dry paper filter, can be removed, maintained and replaced easily
– Efficient: 99,99 %
Information can be changed by Volvo Penta without notice.
Reference: Volvo Penta TAD843GE
Reference: Volvo Penta TAD842GE
