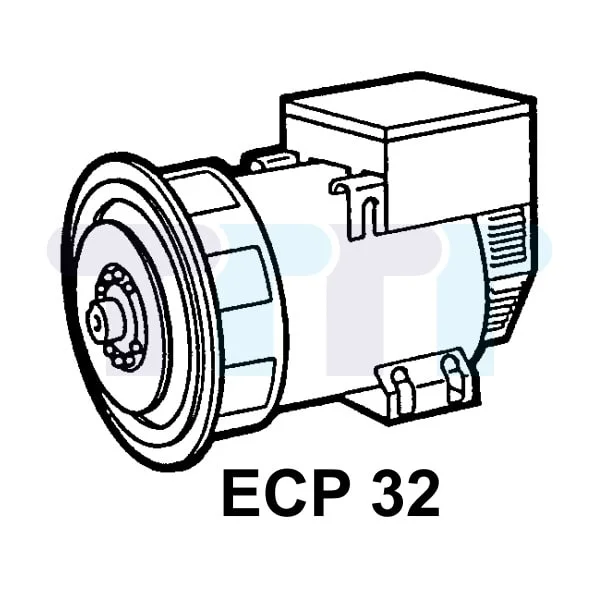

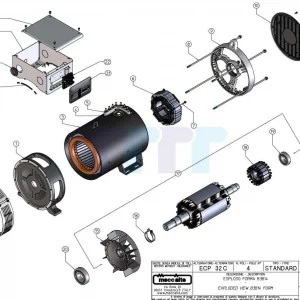

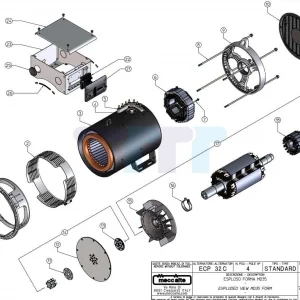

The Mecc Alte ECP32 alternator is a 1500 rpm 3-phase alternator, excited by brush and using AVR with capacities from 37.5kAV to 82.5kVA. Mecc Alte ECP32 spare parts TTTT have many common words such as: stator depending on capacity and rack, rotor depending on capacity, bearings, DSR, … The spare parts are numbered on the alternator diagram. and has its own number to distinguish it from other parts. You can view and choose the right spare parts for your alternator.
Part number, location and name of Mecc Alte ECP32 spare parts
Part name (location) | Part number |
| B14, 32 4C drive end bracket (unpainted) – (1) | 6102312083 |
MD35/1, 32 4C drive end bracket (unpainted) – (1) | 6102312079 |
| MD35/2, 32 4C drive end bracket (unpainted) – (1) | 6102312080 |
MD35/3, 32 4C drive end bracket (unpainted) – (1) | 6102208520 |
| MD35/4, 32 4C drive end bracket (unpainted) – (1) | 6102312081 |
MD35/5, 32 4C drive end bracket (unpainted) – (1) | 6102312082 |
| Protective Screen B14, 32 4C – (2) | 8500626505 |
Protective Screen MD35 SAE 3, 32 4C – (2) | 8500626503 |
| Protective Screen MD35 SAE 1/2/4/5, 32 4C – (2) | 8500626504 |
Bracket and stator 1S 4C (unpainted) – (3) | 3501621001 |
| Bracket and stator 2S 4C (unpainted) – (3) | 3501621002 |
Bracket and stator 1M 4C (unpainted) – (3) | 3501621003 |
| Bracket and stator 2M 4C (unpainted) – (3) | 3501621004 |
Bracket and stator 1L 4C (unpainted) – (3) | 3501621005 |
| Bracket and stator 2L 4C (unpainted) – (3) | 3501621006 |
Cable Gasket 70mm – (4) | 9909509094 |
| M8 7-pin Kit Terminal Board – (5) | 0392050071 |
Stator alternator Exciter H-45 6P – (6) | 4500475620 |
| Exciter H-45, 32 4C – (7) | 9910709100 |
Latch cover S 4C – (8) | 9911190460 |
| Latch cover M 4C – (8) | 9911190450 |
Latch cover L_4C – (8) | 9911190470 |
| Aluminum end bracket without drive (unpainted) – (9) | 6102204220 |
Alternator rear cover – (10) | 9909513306 |
| Sealing Disc – (11) | 6110611509 |
SAE 6.5 Discs – (12) | 6110611180 |
| SAE disc 7.5 – (12) | 6110611182 |
Disc SAE 8 – (12) | 6110611184 |
| Disc SAE 10 – (12) | 6110611186 |
SAE Disk 11.5 – (12) | 6110611188 |
| Gaskets vol 8 – 10 – (13) | 6102330120 |
Disc coupling disc set SAE 6.5 – (14) | 0391704840 |
| Disc coupling disc set SAE 7.5 – (14) | 0391704841 |
Disc coupling disc set SAE 8 – (14) | 0391704842 |
| Disc coupling disc set SAE 10 – (14) | 0391704843 |
Disc coupling disc set SAE 11.5 – (14) | 0391704844 |
| Plastic Fan – (15) | 9909514080 |
Clamp – (16) | 9911150005 |
| Rotor 1S 4C, B14 – (17) | 2001046276 |
Rotor 2S 4C, B14 – (17) | 2001046277 |
| Rotor 1M 4C, B14 – (17) | 2001046278 |
Rotor 2M 4C, B14 – (17) | 2001046279 |
| Rotor 1L 4C, B14 – (17) | 2001046280 |
Rotor 2L 4C, B14 – (17) | 2001046281 |
| Rotor 1S 4C, MD35 – (17) | 2001046270 |
Rotor 2S 4C, MD35 – (17) | 2001046271 |
| Rotor 1M 4C, MD35 – (17) | 2001046272 |
Rotor 2M 4C, MD35 – (17) | 2001046273 |
| Rotor 1L 4C, MD35 – (17) | 2001046274 |
Rotor 2L 4C, MD35 – (17) | 2001046275 |
| Exciter H-45 6P Armature (+ T30 diodes) – (18) | 4500568162 |
Rear Bearing 6309-2RS C3 – (19) | 9900905115 |
| Front Bearing 6312-2RS C3 – (20) | 9900905130 |
Regulator cap with screwdriver – (21) | 9909505310 |
| Electronic AC Automatic Voltage Regulator DSR – (22) | 4505005560 |
Terminal Box (unpainted) – (23) | 7510603373 |
| End box cover (unpainted) – (24) | 9903910114 |
Cable Meter DG48 – (25) | 9909509110 |
| Matte EPDM rubber outsole. 8.5×5.5mm, L = 0.60 m – (26) | 9909515360 |
Alternator bridge rectifier Diodes T30 | 6101001200 |
| End box set, paint (21 + 23 + 24 + 25 + 26) | 0391502015 |
USB2DxR Kit | 0392050060 |
How to identify genuine Mecc Alte ECP32 spare parts
When buying spare parts for Mecc Alte are always accompanied by documents and papers to confirm genuine spare parts of the Mecc Alte ECP32 link 50 kva alternator, documents provided by Mecc Alte and TTTT Global include:
- CO – Certificate of Origin.
- CQ – Quality certificate.
- Import and export certificate.
- Certificate of official authorized distribution of Mecc Alte in Vietnam and Cambodia.
- TTTT Global warranty stamp.
When buying Mecc Alte spare parts, customers should ask for the above documents and documents to confirm that the parts manufactured by Mecc Alte are genuine. If the above documents cannot be provided, the spare parts are not genuine.
References: Mecc Alte ECP28 spare parts
References: T30 Mecc Alte diode
Instructions on how to find and order genuine Mecc Alte ECP32 spare parts
How to find genuine Mecc Alte spare parts
There are many ways to find Mecc Alte generator parts, but to find genuine Mecc Alte parts, there are 3 ways:
- Option 1: Go to the Mecc Alte homepage to find spare parts and contact Mecc Alte or TTTT Global as the representative of Mecc Alte in Vietnam.
- Method 2: Go to TTTT Global homepage to find Mecc Alte spare parts and choose the right spare part for your player based on your player model, after finding the right part can contact TTTT Global and provide the part name, part number, part location and quantity so that TTTT Global can quote the best price and delivery time to you.
- Method 3: Contact TTTT Global and provide information such as model name, part name and quantity. TTTT Global will give you product information and part number as well as the exact location for TTTT Global to quote the best price and delivery time to you.
Genuine Mecc Alte spare parts orders
- First of all, you need to contact and confirm the correct part you are looking for with TTTT Global.
- Then TTTT Global will give you the best price and delivery time.
- When you have fixed the price, you will deposit and pay TTTT Global.
- After receiving goods TTTT Global will notify and receive the remaining payment before delivery – ECP 32 alternator spare parts.
- You can go to TTTT Global warehouse in Ho Chi Minh City or Binh Duong warehouse. Attached with spare parts are full valid import documents.
- We also provide replacement, maintenance and repair services for Mecc Alte alternators.
Mecc Alte spare parts at TTTT Global
TTTT Global is the only authorized dealer of Mecc Alte distributor in Cambodia and Vietnam, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
