TTTT Global would like to send you the overview specifications of the water alternator and wind alternator of the Mecc Alte Eogen series (Made in Italy)
For full details of this line, you can download the pdf file at the top of this article. There you can find all the information including: Specifications, Instruction Manual, Installation Dimensions, electrical diagram of the Mecc Alte Eogen series of wind and water alternator TTTT and much more. .
In particular, the Mecc Alte Eogen wind and water alternator series can adjust the voltage, speed and output power according to usage requirements.

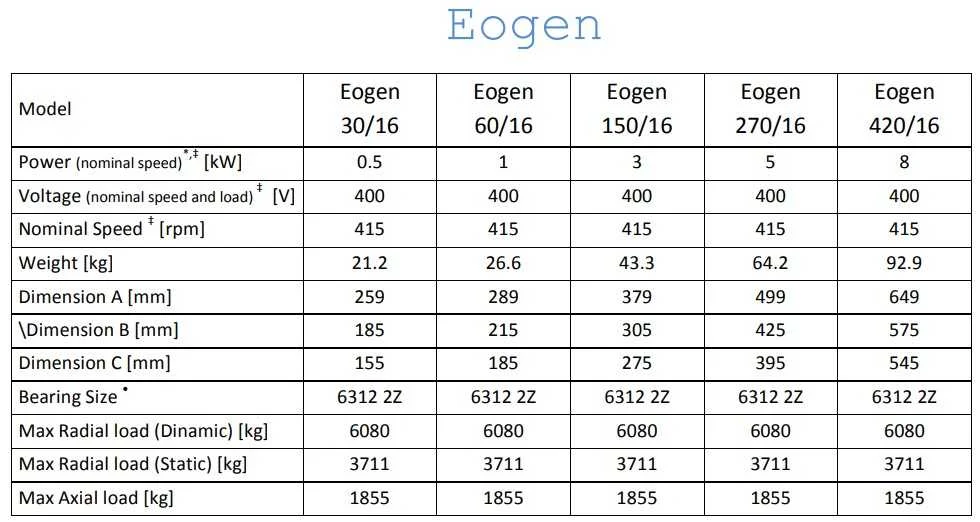

0.5kw Alternator – Mecc Alte Eogen 30/16
1) Brand: MECC ALTE Alternator
2) Model: Mecc Alte Eogen 30/16
3) Continuous power: 0.5kW
4) Rated voltage: 400V
5) Speed: 415 (rpm)
6) Number of poles: 16 poles
7) Power factor: 0.8
8) Number of phases: 1
9) Weight: 21.2 kg
10) Insulation class: H
11) Overrun capacity: 110% accepted every 6 hours of operation.
12) Lifespan: 20 years
13) Magnet: NeFeB
1kw Alternator – Mecc Alte Eogen 60/16
1) Brand: Generator MECC ALTE
2) Model: Mecc Alte Eogen 60/16
3) Continuous power: 1kW
4) Rated voltage: 400V
5) Speed: 415 (rpm)
6) Number of poles: 16 poles
7) Power factor: 0.8
8) Number of phases: 1
9) Weight: 26.6 kg
10) Insulation class: H
11) Overrun capacity: 110% accepted every 6 hours of operation.
12) Lifespan: 20 years
13) Magnet: NeFeB
Reference: Alternator 1000 kVA
Reference: Alternator 1500 kVA
3kw Alternator – Mecc Alte Eogen 150/16
1) Brand: Generator MECC ALTE
2) Model: Mecc Alte Eogen 150/16
3) Continuous power: 3kW
4) Rated voltage: 400V
5) Speed: 415 (rpm)
6) Number of poles: 16 poles
7) Power factor: 0.8
8) Number of phases: 1
9) Weight: 43.3 kg
10) Insulation class: H
11) Overrun capacity: 110% accepted every 6 hours of operation.
12) Lifespan: 20 years
13) Magnet: NeFeB
5kw Alternator – Mecc Alte Eogen 270/16
1) Brand: Generator MECC ALTE
2) Model: Mecc Alte Eogen 270/16
3) Continuous power: 8kW
4) Rated voltage: 400V
5) Speed: 415 (rpm)
6) Number of poles: 16 poles
7) Power factor: 0.8
8) Number of phases: 1
9) Weight: 64.2 kg
10) Insulation class: H
11) Overrun capacity: 110% accepted every 6 hours of operation.
12) Lifespan: 20 years
13) Magnet: NeFeB
8kw Alternator – Mecc Alte Eogen 420/16
1) Brand: Generator MECC ALTE
2) Model: Mecc Alte Eogen 420/16
3) Continuous power: 8kW
4) Rated voltage: 400V
5) Speed: 415 (rpm)
6) Number of poles: 16 poles
7) Power factor: 0.8
8) Number of phases: 1
9) Weight: 92.9 kg
10) Insulation class: H
11) Overrun capacity: 110% accepted every 6 hours of operation.
12) Lifespan: 20 years
13) Magnet: NeFeB
