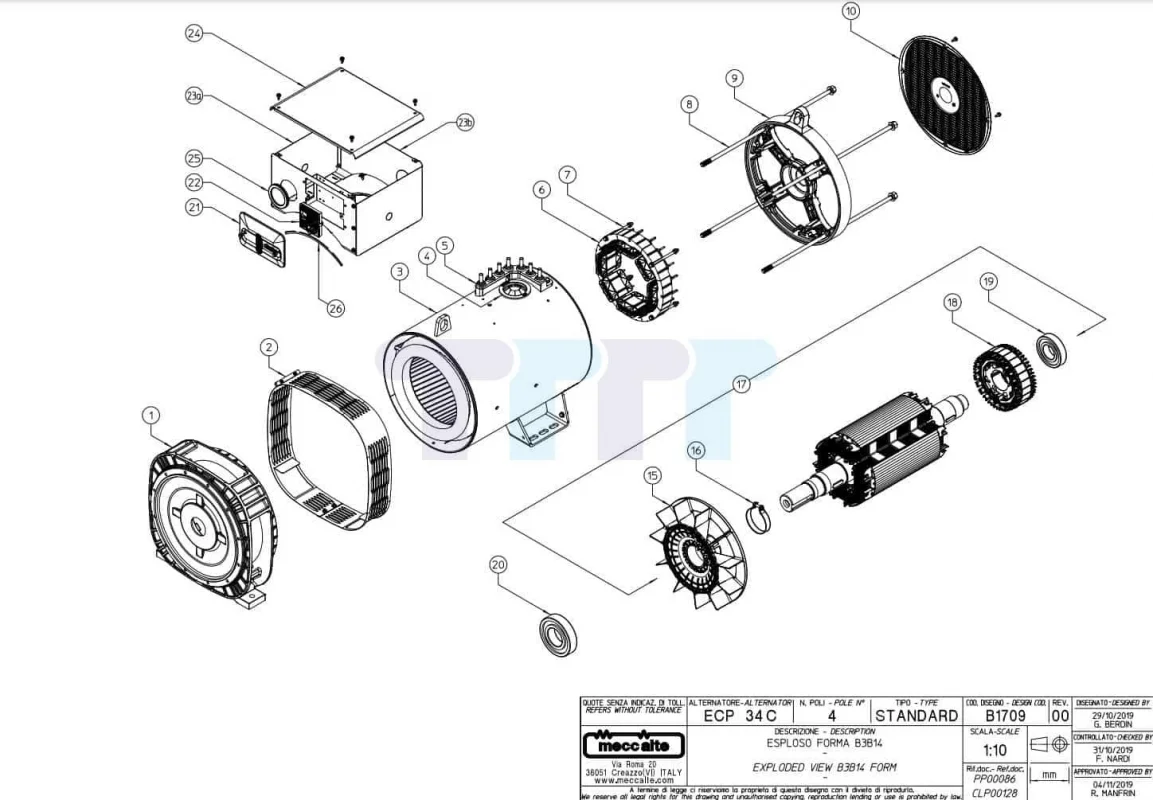

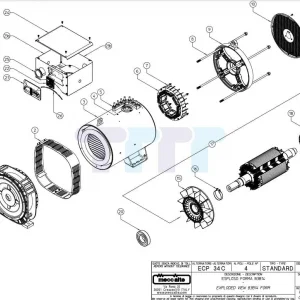

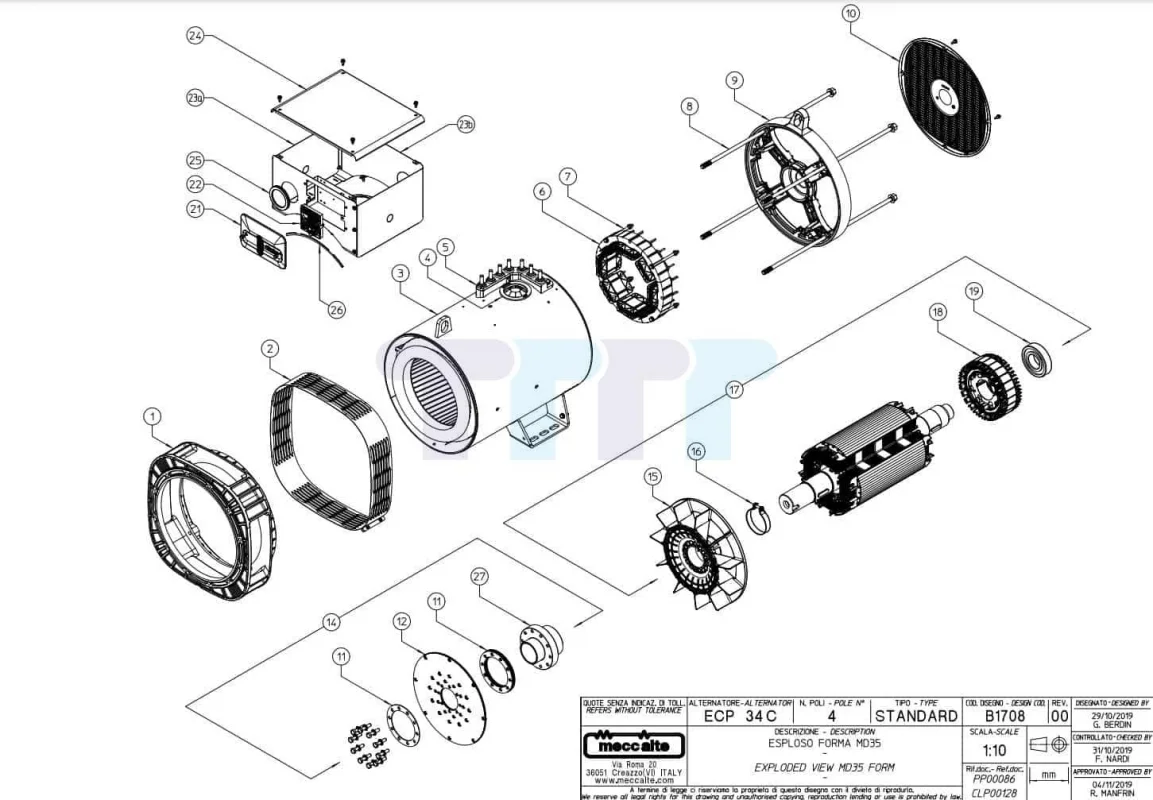

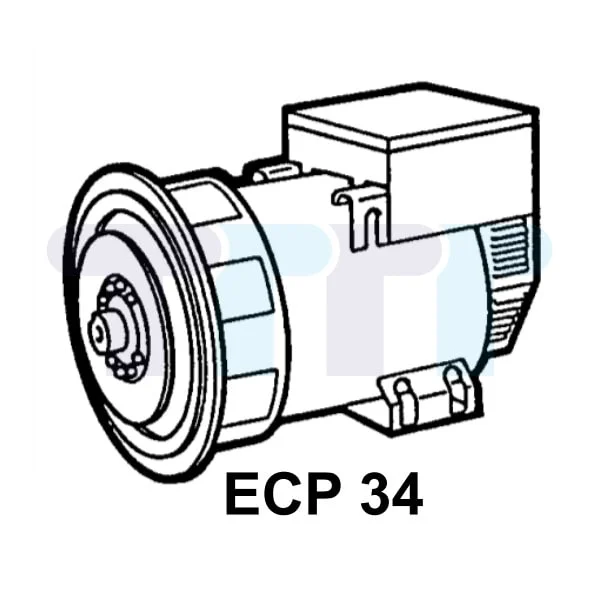

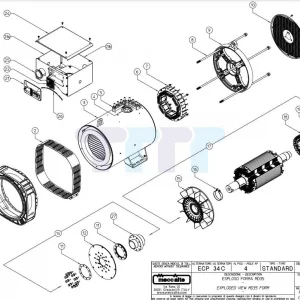

The Mecc Alte ECP34 alternator is a 1500 rpm 3-phase alternator, excited by brush and using AVR with capacities from 100kAV to 150kVA. Mecc Alte ECP34 spare parts TTTT have many common words such as: stator depending on capacity and rack, rotor depending on capacity, bearings, DSR, … The spare parts are numbered on the alternator diagram. and has its own number to distinguish it from other parts. You can view and choose the right spare parts for your alternator.
Part number, location and name of Mecc Alte ECP34 spare parts
Part name (location) | Part number |
B14, 34 4C drive end bracket (unpainted) – (1) | 6102312522 |
MD35/1, 34 4C drive end bracket (unpainted) – (1) | 6102312520 |
MD35/2, 34 4C drive end bracket (unpainted) – (1) | 6102312521 |
MD35/3, 34 4C drive end bracket (unpainted) – (1) | 6102208525 |
Protective Screen MD35, 34 4C – (2) | 8500626506 |
Protective screen B14, 34 4C, right – (2) | 8500626508 |
Protective screen B14, 34 4C, left – (2) | 8500626507 |
Bracket and stator 1S 4C (unpainted) – (3) | 3501631001 |
Bracket and stator 2S 4C (unpainted) – (3) | 3501631002 |
Bracket and stator 1M 4C (unpainted) – (3) | 3501631007 |
Bracket and stator 2M 4C (unpainted) – (3) | 3501631004 |
Bracket and stator 1L 4C (unpainted) – (3) | 3501631005 |
Bracket and stator 2L 4C (unpainted) – (3) | 3501631006 |
90mm Cable Trays – (4) | 9909509095 |
M12 7-pin Kit Terminal Board – (5) | 0392050072 |
Stator alternator exciter H-55 8P – S / M / L – (6) | 4500481655 |
Stator Exciter H-45 8P – S / M / L – (6) | 4500481675 |
Exciter Holder (H = 55, 8P), M8x140 – (7) | 6110607484 |
Exciter Holder (H = 45.8P), M8x130 – (7) | 6110605380 |
Latch cover S 4C – (8) | 9911190428 |
Latch cover M 4C – (8) | 9911190429 |
Latch cover L_4C – (8) | 9911190430 |
Aluminum end bracket without drive 34 4C (unpainted) – (9) | 6102306056 |
Alternator rear cover – (10) | 9909513307 |
Disc Lock Ring – (11) | 6110611505 |
6 discs SAE 10 – (12) | 6110611021 |
6 discs SAE 11.5 – (12) | 6110611026 |
6 discs SAE 14 – (12) | 6110611036 |
SAE 10 disc coupling disc set; old style – (14) | 0390700456 |
SAE 11.5 disc coupling disc set; old style – (14) | 0390700457 |
SAE 14 disc coupling disc set; old style – (14) | 0390700458 |
SAE 10 disc coupler; new style – (14) | 0390700505 |
SAE 11.5 disc coupling disc set; new style – (14) | 0390700506 |
SAE 14 disc splicer; new style – (14) | 0390700507 |
Plastic Fan 34_4C – (16) | 9909514083 |
Clamp 95×22, 34_4C – (17) | 9911150008 |
Rotor 1S 4C, B14 – (17) | 2001052306 |
Rotor 2S 4C, B14 – (17) | 2001052307 |
Rotor 1M 4C, B14 – (17) | 2001052308 |
Rotor 2M 4C, B14 – (17) | 2001052309 |
Rotor 1L 4C, B14 – (17) | 2001052310 |
Rotor 2L 4C, B14 – (17) | 2001052311 |
Rotor 1S 4C, MD35 – (17) | 2001052300 |
Rotor 2S 4C, MD35 – (17) | 2001052301 |
Rotor 1M 4C, MD35 – (17) | 2001052312 |
Rotor 2M 4C, MD35 – (17) | 2001052303 |
Rotor 1L 4C, MD35 – (17) | 2001052304 |
Rotor 2L 4C, MD35 – (17) | 2001052305 |
Exciter 34C armature, H-55 (+ diodes), hole 78.5mm – S/M/L – (18) | 4500568204 |
Exciter 34C armature, H-45 (+ diodes), hole 78.5mm – S/M/L – (18) | 4500568203 |
Rear Bearing 6311-2RS C3 – (19) | 9900905125 |
Front Bearing 6314-2RS C3 – (20) | 9900905135 |
Regulator cap with screwdriver – (21) | 9909505310 |
Electronic Automatic Voltage Regulator DSR – (22) | 4505005560 |
Side panel for AVR (unpainted) – (23a) | 7510603374 |
Closed side panel (unpainted) – (23b) | 9903910211 |
End box cover (unpainted) – (24) | 9903910212 |
Cable Meter, DG69 – (25) | 9909509112 |
Matte EPDM rubber outsole. 8.5×5.5mm, L = 1.00 m – (26) | 9909515360 |
Coupling hub with inner hole = 65 mm, SAE 10 – 11.5 – 14 – (27) | 5504012523 |
Coupling hub with inner hole = 75 mm, SAE 10 – 11.5 – 14 – (27) | 5504012555 |
Junction box set, unpainted (21 + 23a + 23b + 24 + 25 + 26) | 0391402025 |
Terminal box set, paint (21 + 23a + 23b + 24 + 25 + 26) | 0391502082 |
SAE 10 Gasket | 9911145110 |
Alternator bridge rectifier Diodes T30 | 6101001200 |
Diodes T30, machined on the left | 6101001198 |
T30 diodes, machined right out | 6101001199 |
C-Type Diodes | 6101001203 |
Cable assembly + lightning capacitor + T30 Diodes | 6101501951 |
Cable assembly + lightning capacitor + C-Type Diodes | 6101501871 |
USB2DxR Kit | 0392050060 |
How to identify genuine Mecc Alte spare parts – Alternator ECP34
When buying spare parts for Mecc Alte, it is always accompanied by documents and papers to confirm genuine spare parts of the 100 kva alternator or other models in ECP34, documents provided by Mecc Alte and TTTT Global include:
- CO – Certificate of Origin – Alternator spare parts ECP34.
- CQ – Quality certificate – Alternator spare parts ECP34.
- Import and export certificate – Alternator spare parts ECP34.
- Certificate of official authorized distribution of Mecc Alte in Vietnam and Cambodia – Alternator spare parts ECP34.
- Warranty stamp TTTT Global – Alternator spare parts ECP34.
When buying Mecc Alte spare parts, customers should ask for the above documents and documents to confirm that the parts manufactured by Mecc Alte are genuine. If the above documents cannot be provided, the spare parts are not genuine.
References: Mecc Alte ECO32 spare parts
References: T18 Mecc Alte diode
Instructions on how to find and order genuine Mecc Alte ECP34 spare parts
How to find genuine Mecc Alte ECP34 spare parts
There are many ways to find Mecc Alte spa generator parts, but to find genuine Mecc Alte parts, there are 3 ways:
- Option 1: Go to Mecc Alte homepage to find spare parts and contact Mecc Alte or TTTT Global as Mecc Alte representative in Vietnam.
- Method 2: Go to TTTT Global homepage to find Mecc Alte spare parts and choose the right spare part for your player based on your player model, after finding the right part can contact TTTT Global and provide the part name, part number, part location and quantity for TTTT Global to quote and best delivery time to you.
- Method 3: Contact TTTT Global and provide information such as model name, part name and quantity. TTTT Global will give you product information and part number as well as the exact location for TTTT Global to quote the best price and delivery time to you.
Genuine Mecc Alte ECP34 spare parts orders
- First of all, you need to contact and confirm the correct part you are looking for with TTTT Global.
- Then TTTT Global will give you the best price and delivery time.
- When you have fixed the price, you will deposit and pay TTTT Global.
- After receiving goods TTTT Global will notify and receive the remaining payment before delivery – Alternator spare parts ECP 34.
- You can go to TTTT Global warehouse in Ho Chi Minh City or Binh Duong warehouse. Attached with spare parts are full valid import documents .
- We also provide replacement, maintenance and repair services for Mecc Alte alternators.
Mecc Alte spare parts at TTTT Global
TTTT Global is the only authorized dealer of Mecc Alte Cambodia and Vietnam, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
