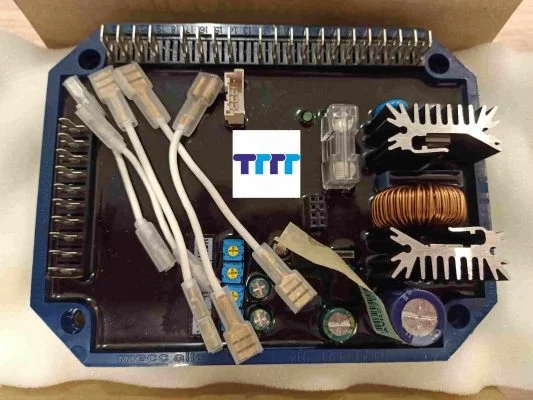

General information about the voltage regulator Mecc Alte DER1 AVR
Mecc Alte DER1 TTTT is a generator voltage regulator, designed to work independently and calibrated to maximize efficiency.
The regulator is designed to control many different types of generators so it must be properly configured for best performance. When the voltage regulator is turned on for the first time, there is a default setting configuration, which meets the characteristics and requirements of different installation conditions.
The DER1 is most popular Mecc Alte generator parts, available in 2 versions:
- DER1 can be used for Mecc Alte generators from 3 to 38: ECP3, ECP28, ECP32, ECP34, ECO38.
- DER1 is used to optimize and popularize Mecc Alte generators from 40 to 46: ECO40, ECO43, ECO46.
The two versions differ mainly in the default parameters of the regulator
Technical characteristics of the voltage regulator device Mecc Alte DER1
DER1 AVR Specifications
- Suitable for all Mecc Alte self-regulating alternators.
- The coil is protected by a 5A quick-acting fuse.
- Working temperature: -25oC to 70oC.
- Input voltage: 40Vac to 270Vac.
- Maximum continuous output current: 5Adc.
- Frequency: 12Hz to 72Hz.
- Voltage regulation range (sensor) from 75Vac to 300Vac.
- Voltage regulation accuracy: 1%.
- Remotely control output voltage via external potentiometer (from 20 Kohm to 100 Kohm).
- Under-speed protection with adjustable threshold and slope.
- Overpressure alarm.
- Overcurrent protection and delay interference.
- Temporary short circuit management.
- Store alarm conditions (alarm type, number of events, duration of last event, total time).
- Remember the operating time of the voltage regulator.
- USB interface (with optional USB2DxR module).

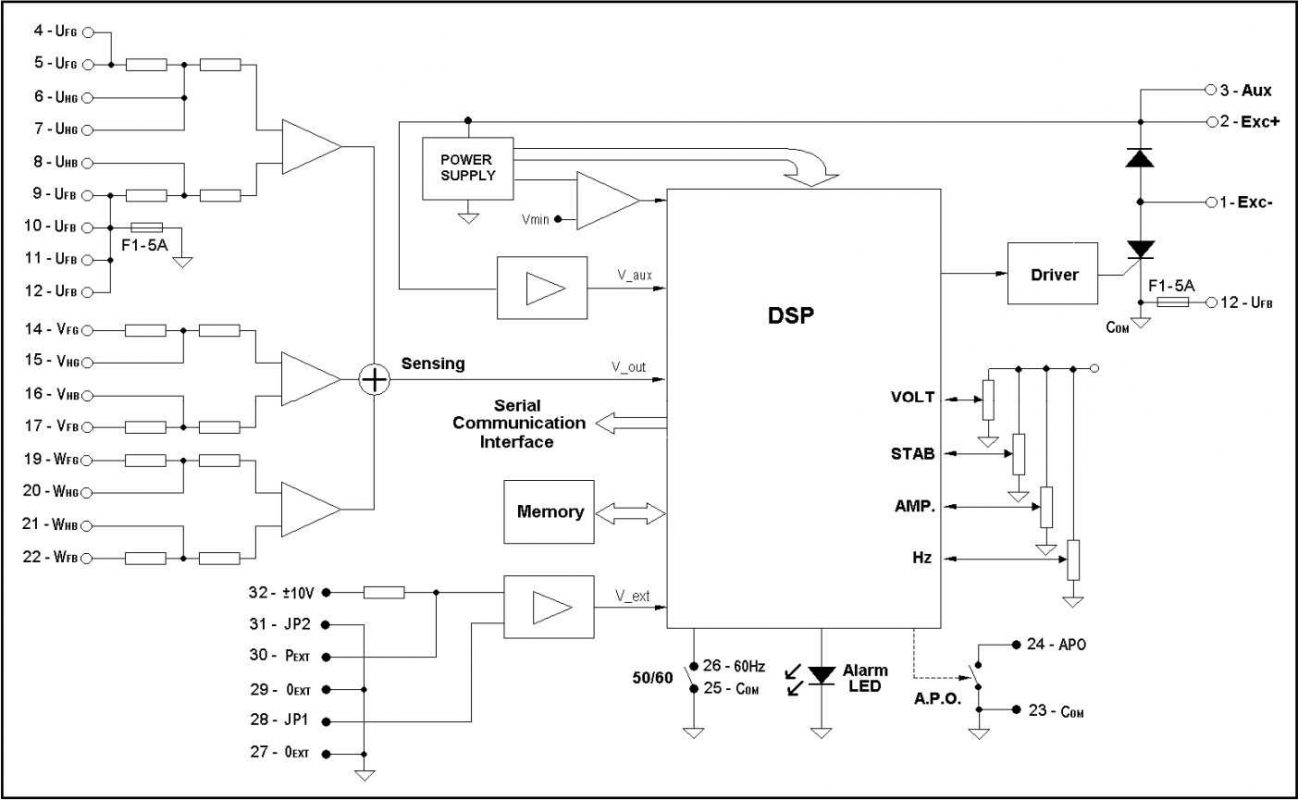

Diagram and dimensions of the DER1 AVR
- Length of voltage regulator DER1: 150 mm
- Width of voltage regulator DER1: 115 mm
- Height of voltage regulator DER1: 40 mm
References: Generator diode
References: Alternator exciter
Mecc Alte DER1 voltage regulator input and output
| Jack legs | Name | Function | Describe | |||
| 1 | Exc- | Excitation. | Continuous Rating: 5Adc Transitory Rating:12Adc at peak | |||
| 2 | Aux/ Exc+ | |||||
| 3 | Aux/ Exc+ | Power. | 40÷270 Vac, Frequency: 12÷72Hz | |||
| 4 | UFG | Sensing. Range 2. | Range 2: 150÷300 Vac Burden: <1VA | |||
| 5 | UFG | |||||
| 6 | UHG | Sensing. Range 1. | Range 1: 75÷150 Vac Burden: <1VA | |||
| 7 | UHG | |||||
| 8 | UHG | Jumper. Range 1. | ||||
| 9 | UFB | |||||
| 10 | UFB | Board reference | ||||
| 11 | UFB | |||||
| 12 | UFB | |||||
| 13 | – | Not present | ||||
| 14 | VFG | Sensing. | Range 1: 75÷150 Vac Burden: <1VA | |||
| 15 | VHG | Sensing. Range 1. | ||||
| 16 | VHB | Scala 2: 150÷300 Vac Burden: <1VA | ||||
| 17 | VFB | Range 2. | ||||
| 18 | – | Not present | ||||
| 19 | WFG | Sensing. | Range 1: 75÷150 Vac Burden: <1VA | |||
| 20 | WHG | Sensing. Range 1. | ||||
| 21 | WHB | Range 2: 150÷300 Vac Burden: <1VA | ||||
| 22 | WFB | Range 2. | ||||
| 23 | Common | Active. Protections output. | Type: Non-insulated open collector Current: 100mA Voltage: 30V Max length: 30m | |||
| 24 | A.P.O | |||||
| 25 | Common | Jumper 50/60Hz. | Type: Not insulated Max length: 3m | |||
| 26 | 50/60Hz | |||||
| 27 | 0EXT | Jumper for remote voltage control to 0 from 2,5Vdc. | Type: Not insulated Max length: 3m | |||
| 28 | JP1 | |||||
| 29 | 0EXT | Input for remote voltage | Type: Not insulated Max length: 30m Input: ±10Vdc | |||
| 30 | PEXT | Jumper for remote voltage control to 0 from 2,5Vdc or Pext. Pext Jumper. | ||||
| 31 | JP2 | Input: 0÷2,5Vdc o Potentiometer 100K Type: Not insulated Max length: 3m | ||||
| 32 | ± 10V | Control ±Vdc | ||||
How to use and install the Mecc Alte DER1 voltage regulator
How to use the Mecc Alte DER1 voltage regulator
When using the Mecc Alte DER1 auto voltage regulator, we need to pay attention to the setup parameters for DER1 including the following basic parameters:
- Voltage setting: Set voltage, Soft start, Slow voltage variation.
- Stability: Adjust the stability.
- Current excitation way: Description, Calibration with monitor, Calibration without monitoring unit.
- Low speed: Description, Calibration with monitor, Calibration without monitoring unit.
- Over speed
- Other parameters: Vout/Vaux ratio, Short circuit time, low trigger alarm interference threshold.
How to install the Mecc Alte DER1 voltage regulator
There are many diagrams to guide the installation of the Mecc Alte DER1 voltage regulator such as:

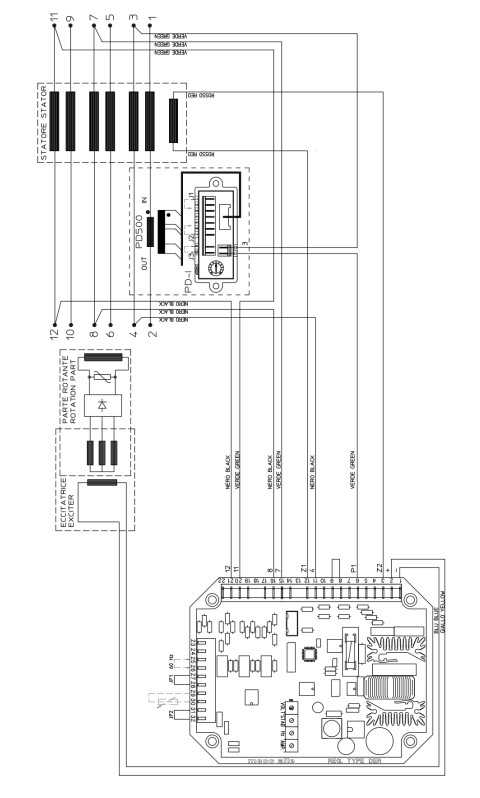

SCC0158/ 05: 75V – 150V three-phase sensor.
SCC0159/ 05: 75V – 150V three-phase sensor.

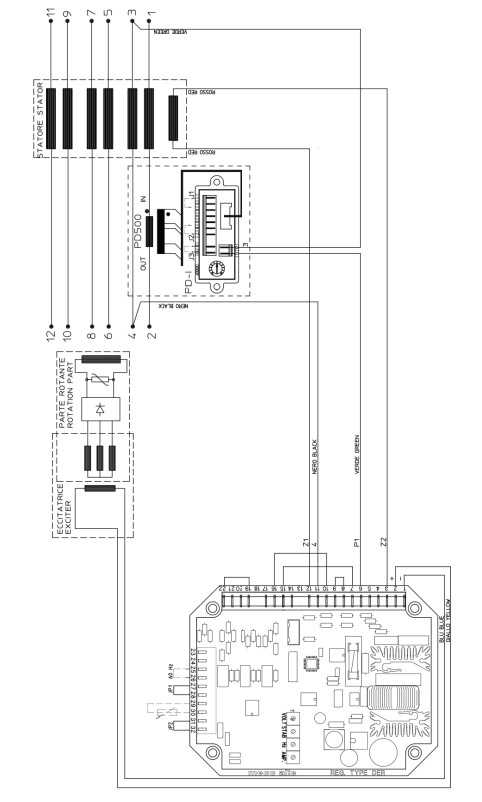

SCC0160/ 03: Single phase sensor 75V – 150V.
SCC0161/ 03: Single phase sensor 150V – 300V.
SCC0202/01: Single phase sensor 300V – 600V.
SCC0203/ 01: Single phase sensor 300V – 600V (generator in three-way connection ZIG-ZAG).
How to check error confirmation Mecc Alte DER1 AVR
There are many ways to check the error of the electric regulator Mecc Alte DER1 AVR such as:
- Power on and check the output sensor pins on the board.
- Check that the parameters are the same as the settings on the system.
- See the warning light displayed during use.
- Connect the DER1 to the installation software.
- Check the board for any fire or explosion causing damage to components.
If there is an error condition, fire damage or failure, please contact us for support as soon as possible.
Mecc Alte spare parts at TTTT Global

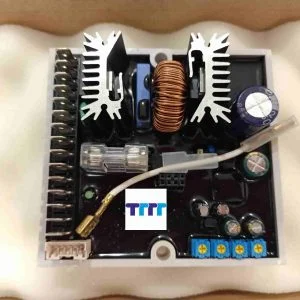

TTTT Global is the only authorized dealer of Mecc Alte Vietnam and Cambodia, we specialize in supplying Mecc Alte spare parts such as: DER1, DSR, UVR6, SR7,… and all kinds of Mecc Alte generators with full capacity from ECP3 to ECO46 modules and single-phase generators S15, S16, S20, ES20, etc.
