Volvo Penta TAD 1345 GE – 1500rpm , 388kW (~ 450 kva) at Prime, 431kW at Standby
| MODEL | ORIGIN |
| Volvo Penta TAD1345GE TTTT | SWEDEN |

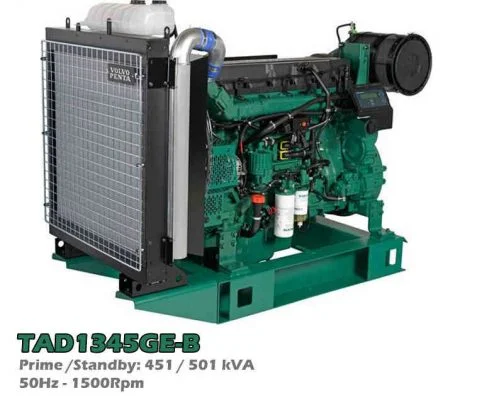

TAD1345GE Volvo Penta Engine used for 450 kva generator
– Original: VOLVO PENTA – VOLVO GROUP
– Made in: Sweden
– Model: TAD1345GE – B
– Prime: 388kW
– Stand by: 431kW
– 4 Stroke diesel engine with direct injection
– Turbocharged
TAD 1345 GE Number of cylinders
– 6 cylinders
– Displacement: 12,78 liter
– Bore: 131 mm
– Stroke: 158 mm
– Firing order: 1-5-3-6-2-4
– Compression ratio : 18,1:1
Volvo TAD1345GE Starter system
– Electric started
– Alternator:
+ Made by: Bosch
+ Output : 80A
+ Automatic pressure regulator
– Starter motor:
+ Made by : Melco
+ Type: 105P70
+ Power: 7 kW
+ Voltage: 24V
Reference: Volvo Penta TAD1641GE
Reference: Volvo Penta parts near me
Volvo TAD 1345 GE Shutdown system
– Electric shutdown
– 24VDC coil to stop motor
Volvo Penta TAD1345GE Cooling system
– Cooled by circulating water combined with axial fans
– Cooling water capacity : 24 liter
– Cooling water tank cap is able to protect over pressure in cooling water tank
– Fan power : 6 kW
– Protection barrier
TAD1345GE Exhaust system
– Silent pipe
– Emissions escaped Vietnam standards for engine exhaust
TAD1345GE Fuel system
– Fuel transfer pump: hand pump (primer pump) and machine pump (high pressure pump)
– Speed governor : Electronic EMS 2.4
TAD1345GE Fuel type
Diesel oil
TAD1345GE Lub oil system
– Forced lubrication + self swing
– Lubricating oil filter installed in the proper position, replace easily
– Lubricating oil capacity: 36 liter
– Lubricating oil consumption: 0,04 liter/h
TAD1345GE Fuel consumption
– 100% at Prime: 196g/kWh
– 75% at Prime: 197g/kWh
– 50% at Prime: 199g/kWh
TAD1345GE Radiators
Circulating heat exchanger in copper
TAD1345GE Air filter
– Dry paper filter, can be removed, maintained and replaced easily
– Efficient: 99,99 %
Information can be changed by Volvo Penta without notice.
